Brake Control System - Service Information (Convertible)
>>
Skid Control Ecu
>>
Components [07/2020 - ]
Components [07/2020 - ]

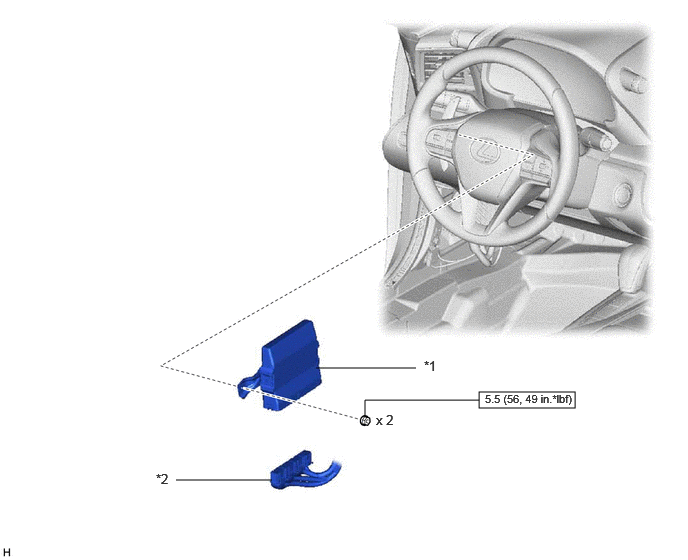

Fig 1: Skid Control ECU Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
SKID CONTROL ECU ASSEMBLY
*2
CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque
-
-
