- REMOVE LOWER FRONT BUMPER COVER
Refer to PROCEDURE - Step 7 [08/2015 - 08/2020]
, or refer to PROCEDURE - Step 7 [08/2020 - ]
- REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 [08/2015 - 08/2020]
, or refer to PROCEDURE - Step 8 [08/2020 - ]
- REMOVE REAR ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 10 [08/2015 - 08/2020]
, or refer to PROCEDURE - Step 10 [08/2020 - ]
- DRAIN ENGINE OIL
See step 1[08/2015 - 08/2020], or see step 1[08/2021 - ]
- DISCONNECT OIL COOLER TUBE SUB-ASSEMBLY
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

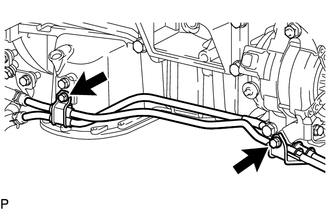

Remove the 2 bolts and disconnect the oil cooler tube sub-assembly.
- REMOVE ENGINE OIL LEVEL SENSOR
- Disconnect the engine oil level sensor connector.

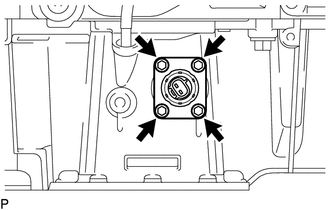

- Remove the 4 bolts and engine oil level sensor.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Cut away part of the gasket and remove the gasket from the engine oil level sensor.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
TEXT IN ILLUSTRATION
| *a |
Cutting Position |
| *b |
Supply Part |
HINT:
Remove the only the outer part of the gasket.
