Home >> Lexus >> 2021 >> GX 460 Base >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> Emission Control System (Service Information) >> PCV Valve >> Components [08/2015 - ]

Components [08/2015 - ]

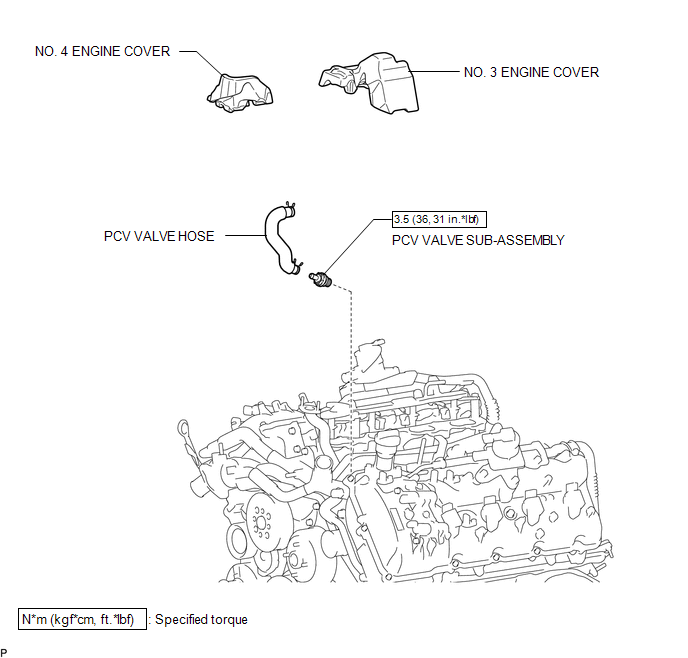

Fig 1: PCV Valve Replacement Components With Torque Specifications

GTY463754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
