Removal [08/2021 - ]: Procedure

  1. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to REMOVAL [08/2021 - ]

  2. REMOVE CENTER CLUSTER MODULE SWITCH LH (DOWNHILL ASSIST CONTROL SWITCH)

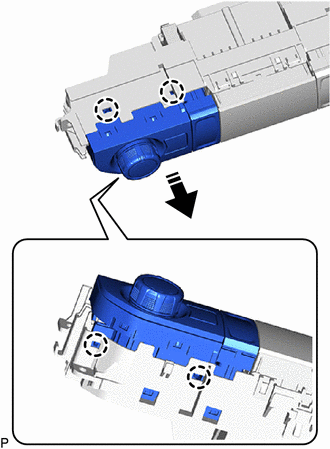

    1. GTY1083279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Detach the claw and remove the center cluster module switch LH (downhill assist control switch) from the integration control and panel assembly.
