Cruise Control Main Switch
>>
Components [08/2019 - ]
Components [08/2019 - ]

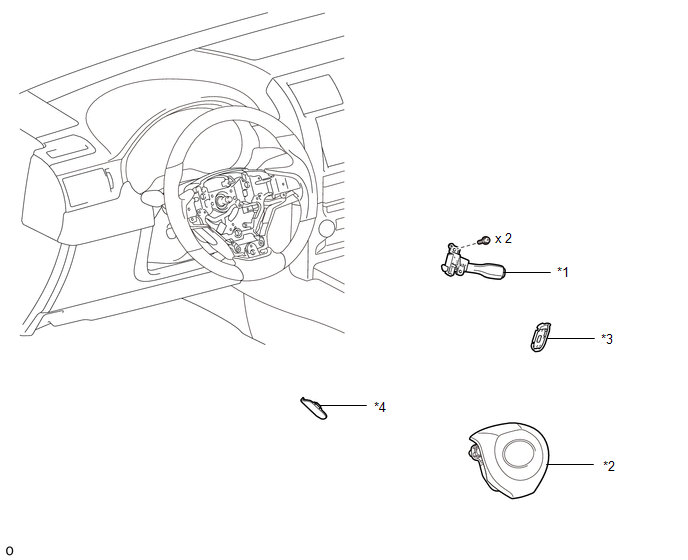

Fig 1: Cruise Control Main Switch Replacement Components [08/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CRUISE CONTROL MAIN SWITCH
*2
HORN BUTTON ASSEMBLY
*3
LOWER NO. 2 STEERING WHEEL COVER
*4
LOWER NO. 3 STEERING WHEEL COVER
