Cruise Control System (Service Information)
>>
Cruise Control Main Switch
>>
Components [08/2015 - 08/2019]
Components [08/2015 - 08/2019]

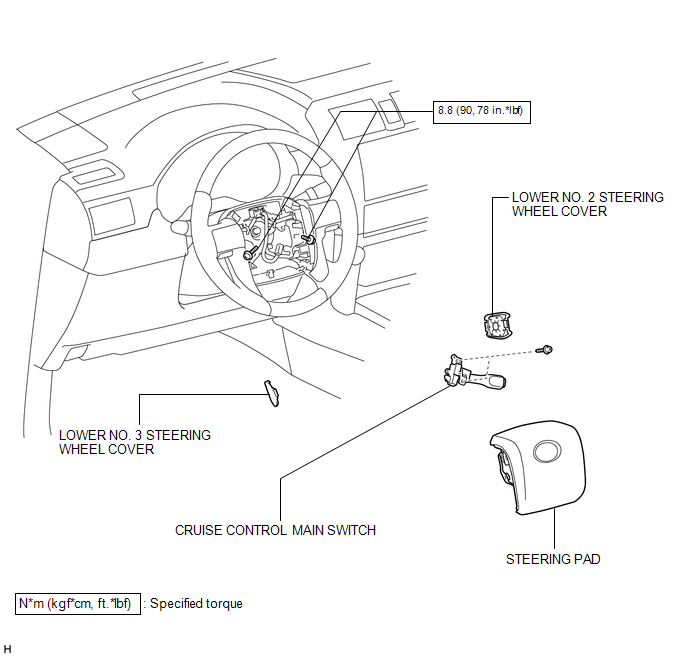

Fig 1: Cruise Control Main Switch Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
