Removal [06/2018 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 1 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - ]

  2. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 20 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 20 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 20 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 20 [09/2022 - ]

  3. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 21 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 21 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 21 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 21 [09/2022 - ]

  4. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

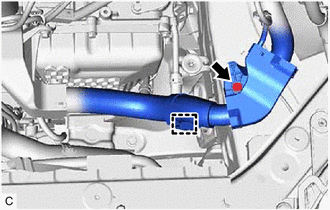

    1. Remove the bolt and disengage the wire harness clamp to separate the engine wire.
      GTY763559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

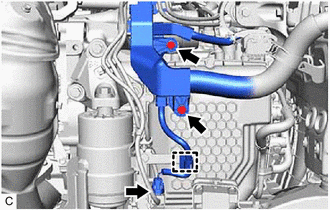

    2. Remove the 2 bolts.
      GTY763571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

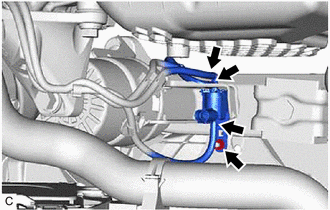

    3. Disengage the wire harness clamp and disconnect the vacuum switching valve (for active control engine mount system) connector.
    4. Disconnect the 3 vacuum hoses from the vacuum switching valve (for active control engine mount system).
      GTY763560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the nut and vacuum switching valve (for active control engine mount system) from the front engine mounting insulator.
