On-Vehicle Inspection [06/2018 - ]: Procedure

REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 7 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 7 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]
REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 8 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 8 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 9 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 9 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]
REMOVE NO. 3 ENGINE UNDER COVER
Refer to PROCEDURE - Step 10 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 10 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - ]

INSPECT FRONT ENGINE MOUNTING INSULATOR

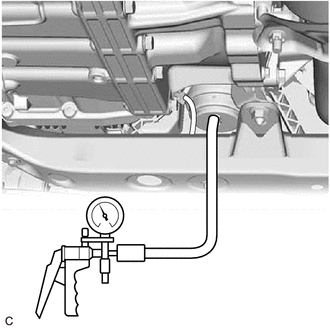

Using a vacuum pump, apply vacuum of 80 kPa (600 mmHg, 23.6 in.Hg) and wait for 1 minute.

Check that there is no change in the needle movement of the vacuum pump gauge.
OK

Vacuum pressure holds.
Check that there is no fluid leakage caused by a break in the diaphragm.
Connect the vacuum hose to the front engine mounting insulator.
