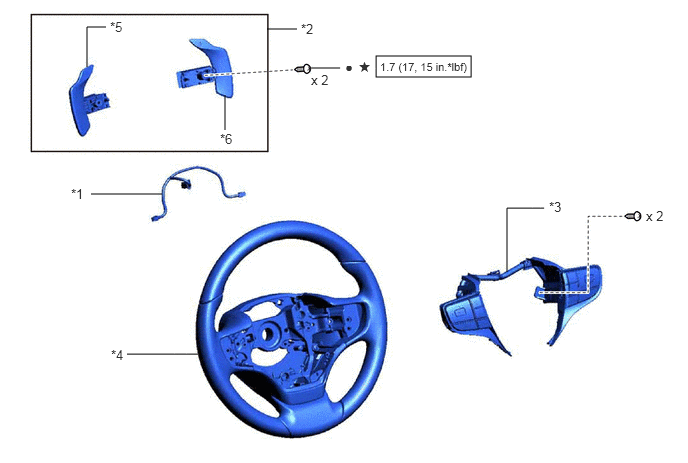

Components [06/2018 - ]
| *1 | NO. 1 SWITCH WIRE | *2 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | STEERING WHEEL ASSEMBLY |
| *5 | SHIFT PADDLE SWITCH LH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | *6 | SHIFT PADDLE SWITCH RH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
