Components [08/2021 - ]

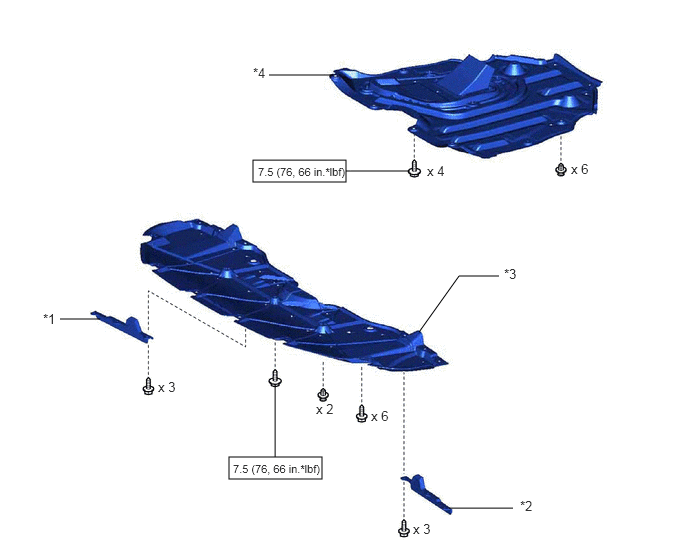

Fig 1: Shift Lever Position Sensor Replacement Components With Torque Specifications [08/2021 - ] (1 Of 3)
| *1 | FRONT WHEEL OPENING EXTENSION PAD RH | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

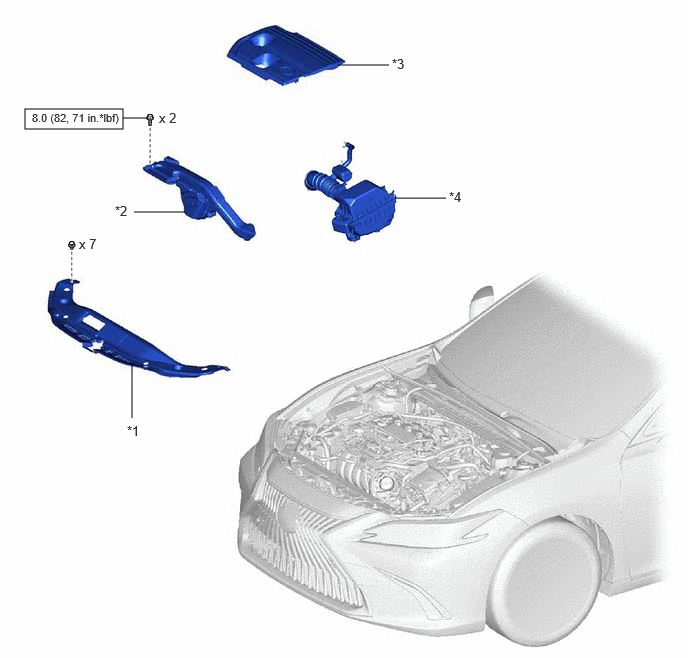

Fig 2: Shift Lever Position Sensor Replacement Components With Torque Specifications [08/2021 - ] (2 Of 3)
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | INLET AIR CLEANER ASSEMBLY |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

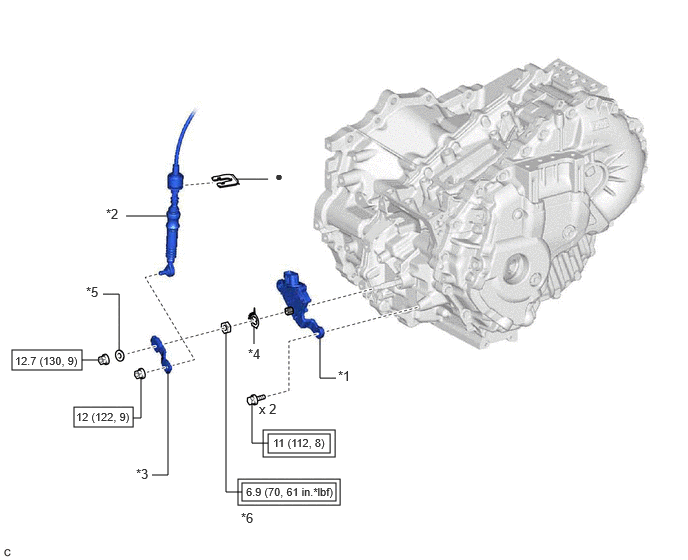

Fig 3: Shift Lever Position Sensor Replacement Components With Torque Specifications [08/2021 - ] (3 Of 3)
| *1 | SHIFT LEVER POSITION SENSOR | *2 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| *3 | CONTROL SHAFT LEVER | *4 | LOCK PLATE |
| *5 | WASHER | *6 | LOCK NUT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
