Components [08/2021 - ]

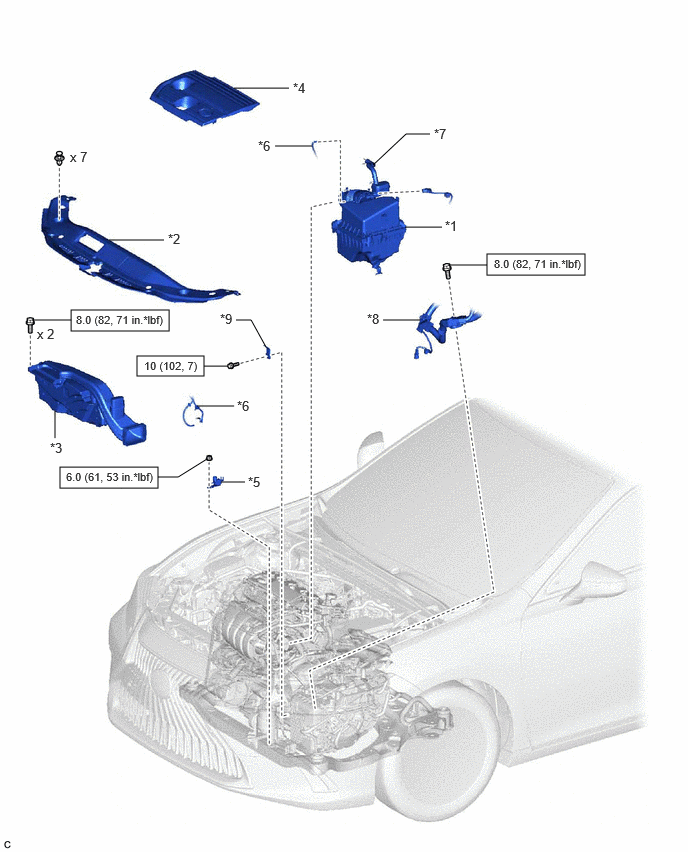

Fig 1: Vacuum Switching Valve (for Engine Mounting) Replacement Components With Torque Specifications [08/2021 - ]
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *5 | VACUUM SWITCHING VALVE (for Active Control Engine Mount System) | *6 | VACUUM HOSE |
| *7 | NO. 2 VENTILATION HOSE | *8 | ENGINE WIRE |
| *9 | WIRE HARNESS CLAMP BRACKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
