Removal [06/2018 - ]: Procedure

  1. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 09/2022] , or refer to REMOVAL [09/2022 - ]

  2. REMOVE BRAKE HOLD SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY)

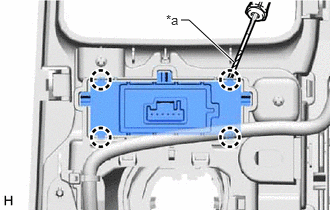

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the brake hold switch (No. 2 combination switch assembly) from the rear upper console panel sub-assembly.
      GTY786579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
