Removal [06/2018 - ]: Procedure

  1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 3 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 3 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 3 [09/2022 - ]

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

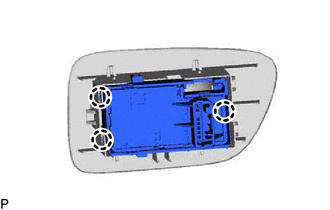

    1. Disengage the 3 claws to remove the rear power window regulator switch assembly.
      GTY816505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
