Inspection [06/2018 - ]: Procedure
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
- Check the switch function.

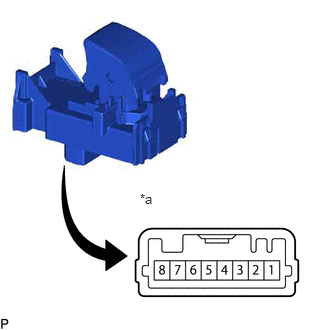

*a Component without harness connected
(Power Window Regulator Switch Assembly)- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 5 - 7 Auto up or manual up position Below 100 Ω 4 - 7 Auto down or manual down position Below 100 Ω 8 - 7 Auto up or auto down position Below 100 Ω 5 - 7 Off 10 kΩ or higher 4 - 7 Off 10 kΩ or higher 8 - 7 Off 10 kΩ or higher If the result is not as specified, replace the power window regulator switch assembly.
- Measure the resistance according to the value(s) in the table below.
- Check that the LED illuminates.
- Apply auxiliary battery voltage to the power window regulator switch assembly and check that the LED illuminates.
OK
Battery Connection Specified Condition Auxiliary battery positive (+) → 2
Auxiliary battery negative (-) → 7LED illuminates If the result is not as specified, replace the power window regulator switch assembly.
