Inspection [08/2020 - ]: Procedure
- INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for 2WD)
- Preparation for check

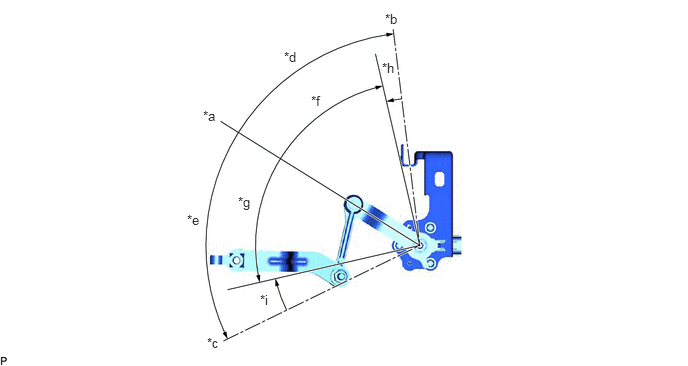

- Confirm the standard, high and low positions of the link that will be used in the following inspection.
- The standard position is 58° from the maximum link angle (high) and 51° from the maximum link angle (low).
- The high position (+45°) is 13° from the maximum link angle (high).
- The low position (-45°) is 6° from the maximum link angle (low).
*a Standard Position *b Maximum Link Angle (Low) *c Maximum Link Angle (High) *d 51° *e 58° *f -45° *g +45° *h 6° *i 13° - - - Connect 3 dry cell batteries (1.5 V) in series.NOTE:
Do not use rechargeable batteries as they may not output a voltage of 1.5 V.
- Connect a positive (+) lead from the batteries to terminal 3 (SHB) and a negative (-) lead to terminal 1 (SHG).

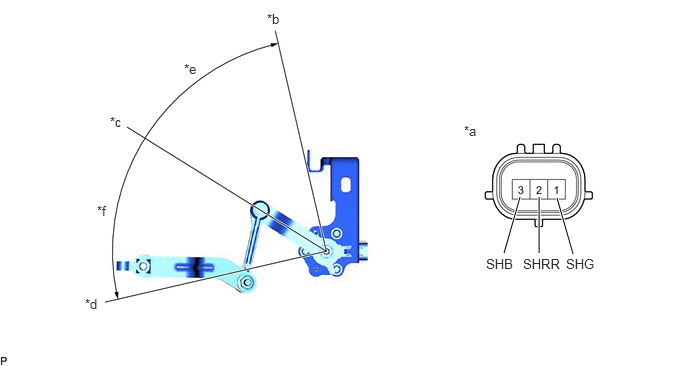

*a Component without harness connected
(Rear Height Control Sensor Sub-assembly LH)*b Low *c Standard Position *d High *e -45° *f +45° - Measure the voltage between terminals 2 (SHRR) and 1 (SHG) while slowly moving the link up and down.
Standard Voltage
Tester Connection Condition Specified Condition 2 (SHRR) - 1 (SHG) +45° (High) 4.5 V 2 (SHRR) - 1 (SHG) 0° (Standard position) 2.5 V 2 (SHRR) - 1 (SHG) -45° (Low) 0.5 V If the result is not as specified, replace the rear height control sensor sub-assembly LH.
- Confirm the standard, high and low positions of the link that will be used in the following inspection.
- Preparation for check
- INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for AWD)
- Check the rear height control sensor sub-assembly LH.
- Connect 3 dry batteries of 1.5 V in series.
- Connect the positive (+) end of the batteries to terminal 3 (SHB) of the rear height control sensor sub-assembly LH and the negative (-) end of the batteries to terminal 1 (SHG). While slowly moving the sensor link up and down, measure the voltage between terminal 2 (SHRR) and terminal 1 (SHG).NOTE:
- Do not use rechargeable batteries as they may not output a voltage of 1.5 V.
- Do not apply a voltage of more than 6 V.

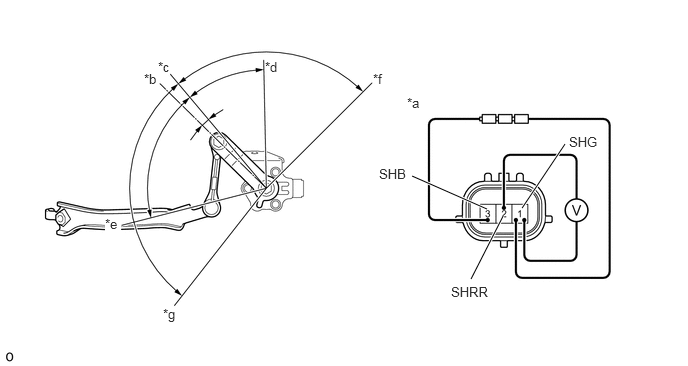

*a Component without harness connected
(Rear Height Control Sensor Sub-assembly LH)*b Standard position
(6.5° from horizontal position)*c Horizontal Position *d Height low (Full bound)
(18.5° from standard position)*e Height high (Full rebound)
(45.5° from standard position)*f Bound side link stop position
(85° from standard position)*g Rebound side link stop position
(102° from standard position)- - - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 1 (SHG) - 2 (SHRR) Link moves upward from standard position to bound side (Height low) From 18.5° to bound side link stop position 0.5 V 18.5° (Full Bound) 1.69 V Horizontal Position - 2.5 V Link moves downward from standard position to rebound side (Height high) Standard position 2.79 V 45.5° (Full Rebound) 4.5 V From 45.5° to rebound side link stop position 4.5 V If the result is not as specified, replace the rear height control sensor sub-assembly LH.
- Check the rear height control sensor sub-assembly LH.
