Installation [11/2017 - 01/2023]: Procedure

INSTALL FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTE:

Do not apply force to the heater area as the heater may become damaged.
Do not forcibly pull the wire harness as it may become damaged.

Engage the 2 guides and 2 claws as indicated by the arrows, in the order shown in the illustration to install the No. 2 forward recognition cover.

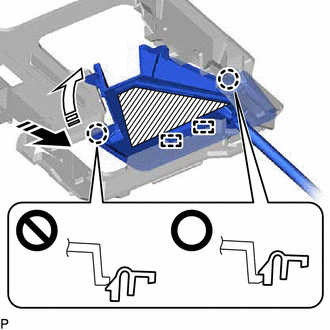

Fig 1: Forward Recognition With Heater Hood Sub-Assembly Claw Engagement Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Install in this Direction (1)
	Install in this Direction (2)
	Heater Area

NOTE:

Make sure that the 2 claws are engaged as shown in the illustration. Failure to do so may result in the malfunction of systems that use the forward recognition camera.

Engage the clamp and 5 ribs to install the forward recognition with heater hood sub-assembly.

NOTE:

As the No. 1 forward recognition cover cannot be installed correctly if the clamp and ribs are not engaged securely, make sure to engage each clamp and rib securely.

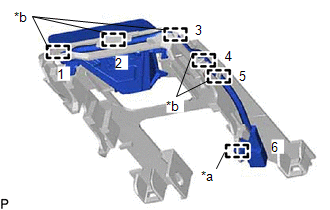

Fig 2: No. 1 Forward Recognition Cover With Heater Hood Sub-Assembly Clamp And Rib Engagement Sequence

*a	Clamp
*b	Rib

HINT:

Engage the clamp and ribs in the order shown in the illustration.

Connect the connector.

INSTALL FORWARD RECOGNITION CAMERA
Refer to INSTALLATION [11/2017 - 01/2023]
