Installation [01/2023 - ]: Procedure

INSTALL FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTE:

Do not touch the inner surface of the forward recognition with heater hood sub-assembly.
Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

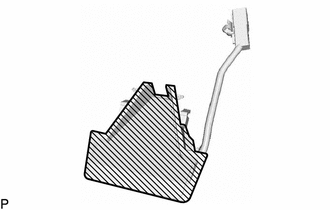

Inner Surface of Forward Recognition with Heater Hood Sub-assembly

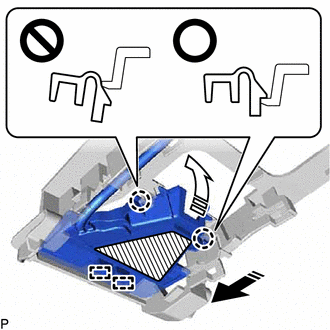

Engage the 2 guides and 2 claws as indicated by the arrows in the order shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Install in this Direction (1)
	Install in this Direction (2)
	Heater Area

NOTE:

Make sure that the 2 claws are engaged as shown in the illustration. Failure to do so may result in the malfunction of systems that use the forward recognition camera.
Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

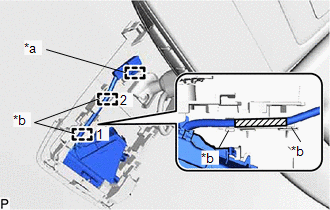

With the marking tape of the wire harness in between the 2 wire harness clamps, engage the 2 wire harness clamps in the order shown in the illustration.

*a	Connector Clamp
*b	Wire Harness Clamp
	Marking Tape

NOTE:

Do not forcibly pull the wire harness as it may become damaged.
As the No. 1 forward recognition cover cannot be installed correctly if the wire harness clamps are not engaged securely, make sure to engage the wire harness clamps securely.

Engage the connector clamp to install the forward recognition with heater hood sub-assembly.
NOTE:
As the No. 1 forward recognition cover cannot be installed correctly if the connector clamp is not engaged securely, make sure to engage the connector clamp securely.
Connect the connector.

INSTALL FORWARD RECOGNITION CAMERA
Refer to INSTALLATION [01/2023 - ]
