Components [11/2017 - ]

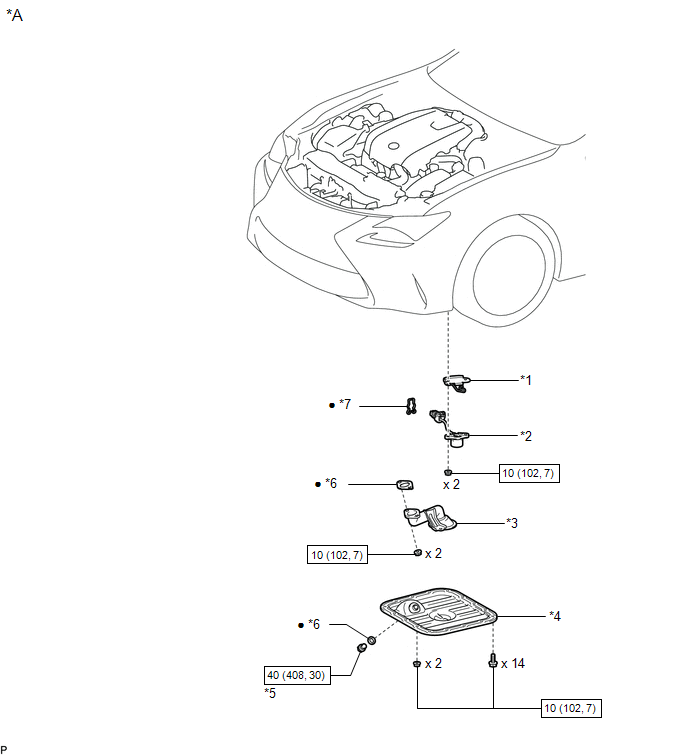

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications [11/2017 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD	-	-
*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
*3	OIL LEVEL SENSOR BRACKET	*4	FRONT SUSPENSION MEMBER BRACE
*5	GASKET	*6	OIL PAN DRAIN PLUG
*7	CLIP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

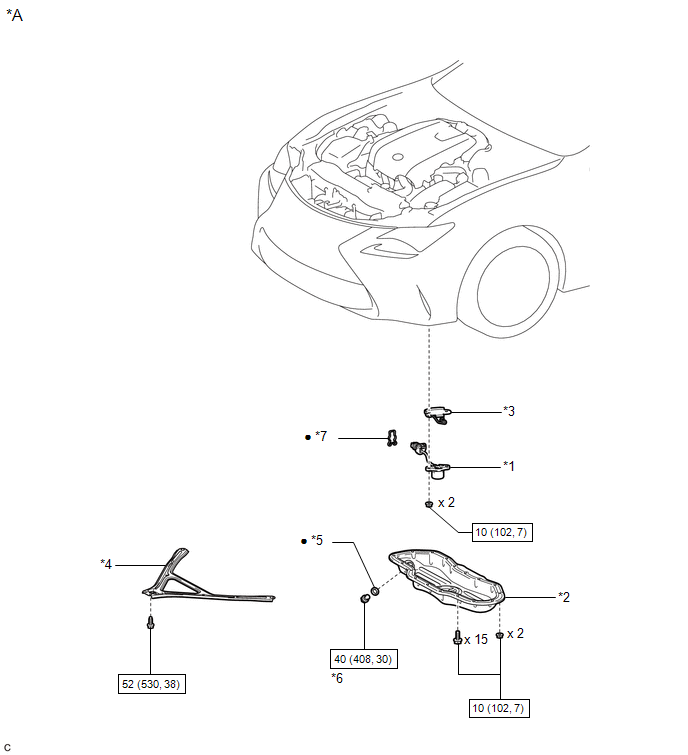

Fig 2: Oil Level Sensor Replacement Components With Torque Specifications [11/2017 - ] (2 Of 2)

Callout	Description	Callout	Description
*A	for AWD	-	-
*1	OIL LEVEL SENSOR BRACKET	*2	ENGINE OIL LEVEL SENSOR
*3	OIL PIPE WITH STRAINER SUB-ASSEMBLY	*4	NO. 2 OIL PAN SUB-ASSEMBLY
*5	OIL PAN DRAIN PLUG	*6	GASKET
*7	CLIP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
