Installation [04/2013 - 10/2016]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

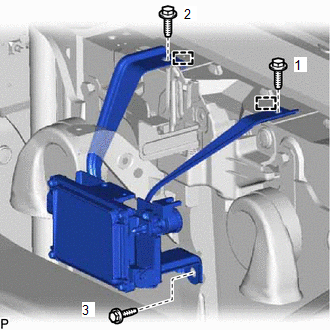

Engage the 2 guides and install the millimeter wave radar sensor assembly with the 3 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

HINT:

Tighten the bolts in the order shown in the illustration.

Engage the clamp.
Connect the connector.

INSTALL FRONT BUMPER ASSEMBLY
For Standard: Refer to INSTALLATION [04/2013 - 10/2016]

For Sport Package: Refer to INSTALLATION [04/2013 - 10/2016]
ADJUST MILLIMETER WAVE RADAR SENSOR
Refer to ADJUSTMENT [04/2013 - 10/2016]
