Installation [04/2013 - 10/2016]: Procedure
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL LANE DEPARTURE WARNING CAMERA
- When using a new lane departure warning camera:

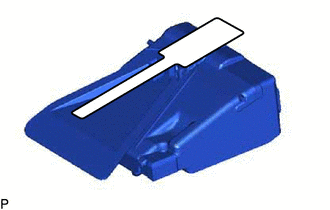

- Remove the protective film.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Do not touch the camera lens after removing the protective film.

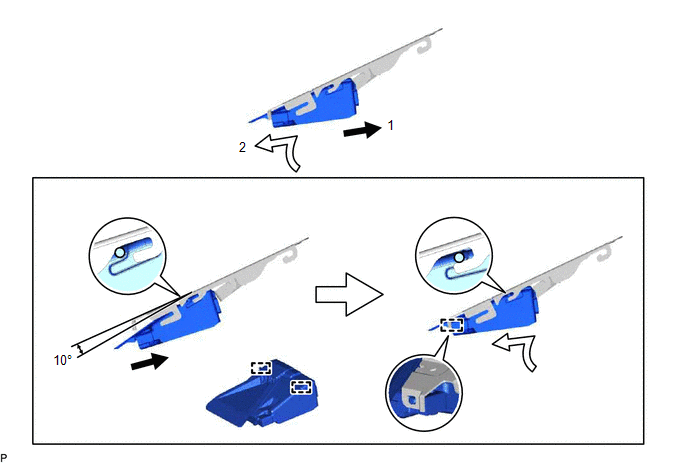

- Engage the 2 guides as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Do not touch the camera lens.
- Engage the guide as shown in the illustration.
- Connect the connector to install the lane departure warning camera.
- INSTALL LANE DEPARTURE WARNING CAMERA COVER

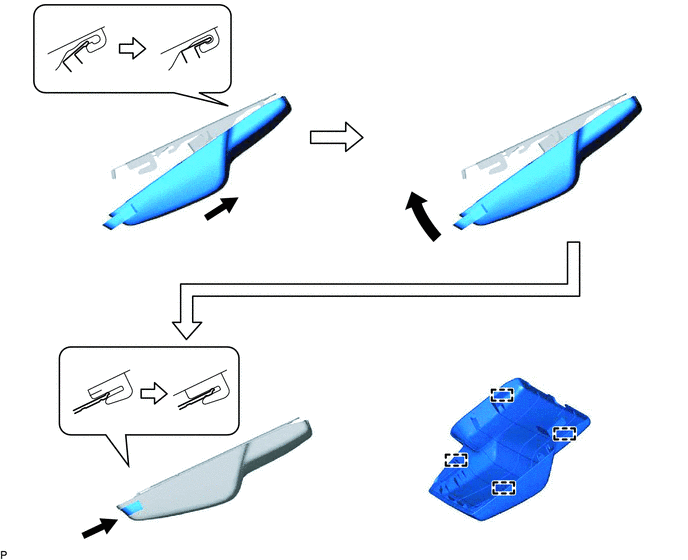

- Engage the 4 guides to install the lane departure warning camera cover as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- ADJUST LANE DEPARTURE WARNING CAMERA
Refer to ADJUSTMENT [04/2013 - 10/2016]
