Components [10/2016 - 10/2017]

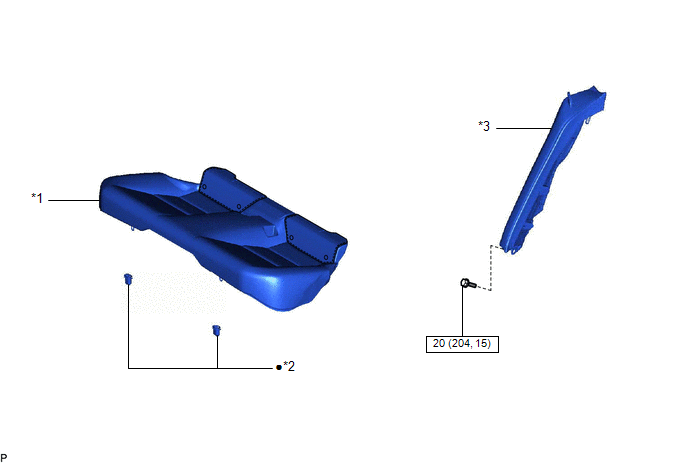

Fig 1: Door Control Receiver Replacement Components With Torque Specifications [10/2016 - 10/2017] (1 Of 2)
| *1 | REAR SEAT CUSHION ASSEMBLY | *2 | REAR SEAT CUSHION LOCK HOOK |
| *3 | REAR SIDE SEATBACK ASSEMBLY LH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

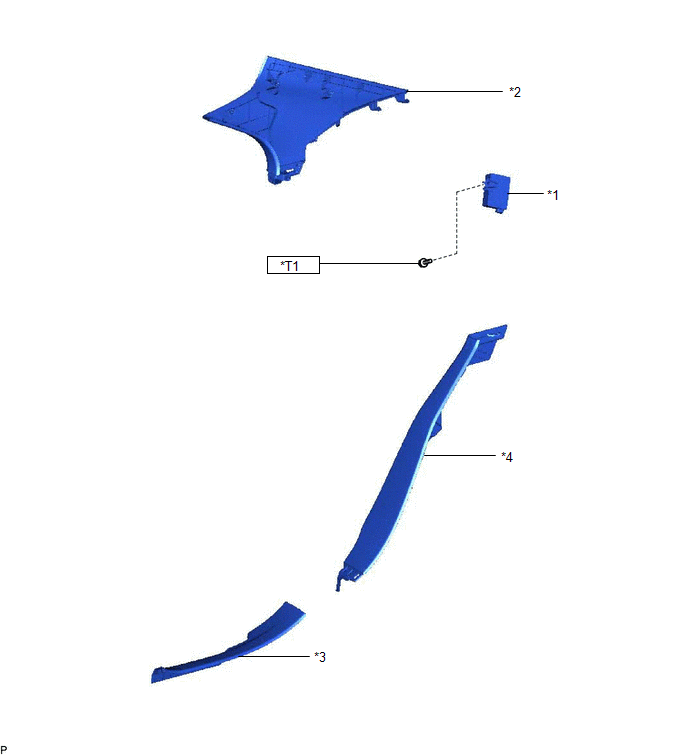

Fig 2: Door Control Receiver Replacement Components With Torque Specifications [10/2016 - 10/2017] (2 Of 2)
| *1 | DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | *2 | INNER ROOF SIDE GARNISH ASSEMBLY LH |
| *3 | REAR DOOR SCUFF PLATE LH | *4 | REAR SEAT SIDE GARNISH LH |
| N.m (kgf/cm, ft.lbf): Specified torque | *T1 | Bolt A: 8.3 N.m (85 kgf/cm, 73 in.lbf) Bolt B: 10.4 N.m (106 kgf/cm, 8 ft.lbf) |
