Removal [10/2015 - ]: Procedure

  1. DRAIN ENGINE OIL

    See step  1

  2. REMOVE FRONT SUSPENSION MEMBER BRACE

    Refer to PROCEDURE - Step 10 [10/2015 - 09/2016] or refer to PROCEDURE - Step 10 [09/2016 - ]

  3. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.

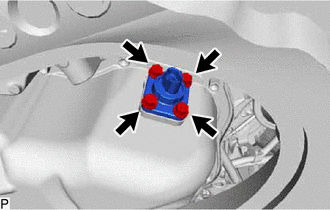

    2. Remove the 4 bolts and engine oil level sensor from the oil pan sub-assembly.
      GTY633091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the engine oil level sensor.
