Reassembly [09/2014 - 10/2015]: Procedure

  1. INSTALL BRAKE ACTUATOR BOLT CUSHION
    1. Install the 3 brake actuator bolt cushions to the brake actuator bracket.
  2. INSTALL BRAKE ACTUATOR CASE COLLAR
    1. Install the 3 brake actuator case collars to the brake actuator bolt cushions.
      NOTE:

      Make sure the collars are in full contact with the cushions.

  3. INSTALL BRAKE ACTUATOR BRACKET ASSEMBLY

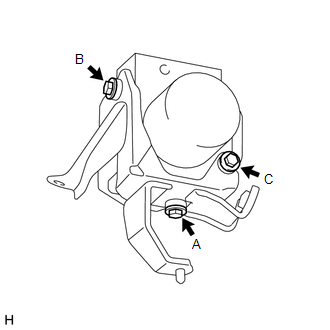

    1. Install the brake actuator bracket to the brake actuator with the 3 bolts. Tighten the 3 bolts uniformly in alphabetical order.
      GTY399754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

      NOTE:
      • Do not remove the hole plugs of a new brake actuator before connecting the 6 brake lines because the brake actuator is filled with brake fluid.
      • Do not hold the actuator by the connector.
      • If the actuator is dropped, replace it.
