Installation [09/2014 - 10/2015]: Procedure

1. Install the No. 5 brake actuator bracket with the bolt.

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

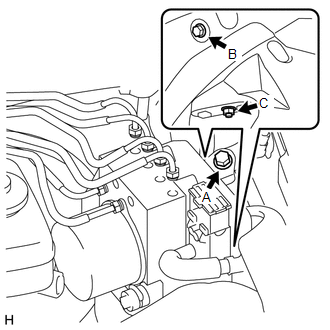

1. Install the brake actuator with bracket with the 2 bolts and nut. Tighten the 2 bolts and nut uniformly in alphabetical order.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

   NOTE:

   • Do not damage the brake lines or wire harness.
   • Do not hold the actuator by the connector.
   • If the actuator is dropped, replace it.
2. Temporarily tighten each brake line to the correct positions of the actuator assembly with bracket as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

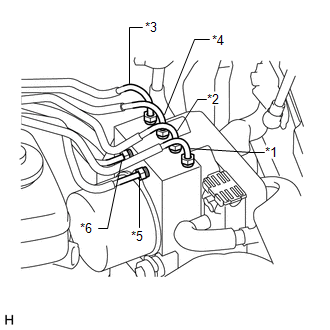

   HINT:

   • *1: to front wheel cylinder RH
   • *2: to front wheel cylinder LH
   • *3: to rear wheel cylinder RH
   • *4: to rear wheel cylinder LH
   • *5: from front master cylinder
   • *6: from rear master cylinder

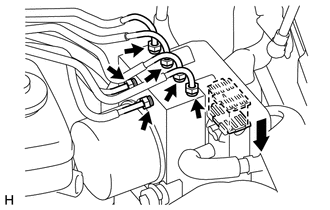

3. Using a union nut wrench, tighten each brake line.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Specified tightening torque

   Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

   HINT:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

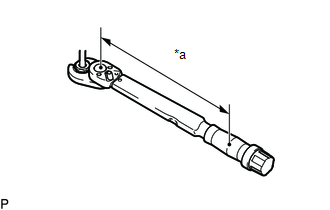

   TEXT IN ILLUSTRATION



   *a	Torque Wrench Fulcrum Length

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench (Refer to PRECAUTION [09/2014 - 10/2015] ).
   • When using a union nut wrench (fulcrum length of 22 mm (0.8661 in.)) + torque wrench (fulcrum length of 162 mm (6.3779 in.)): 13 N*m (137 kgf*cm, 10 ft.*lbf)
4. Connect the brake actuator connector.
   NOTE:

   • Make sure that the connector is locked securely.
   • Make sure that the actuator connector can be connected smoothly. Do not allow water, oil or dirt to enter.

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 2

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

(Refer to ON-VEHICLE INSPECTION [09/2014 - 10/2015] )

(Refer to CALIBRATION [09/2014 - 10/2015] )
