Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE FRONT ROOF TOP GARNISH

    Refer to PROCEDURE - Step 25

  2. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE LANE RECOGNITION CAMERA SENSOR ASSEMBLY

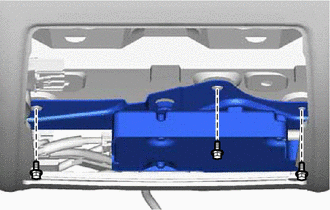

    1. Remove the 3 bolts.
      GTY396605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

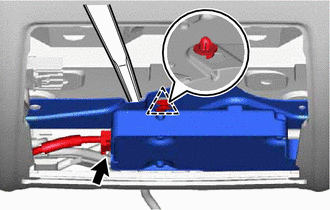

    2. Using a molding remover, detach the clip and remove the lane recognition camera sensor assembly.
      GTY397497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the lens of the camera sensor during removal.

    3. Disconnect the connector.
