Installation [10/2015 - ]: Procedure

  1. INSTALL FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY (w/ Camera Heater)
    NOTE:

    During work, do not touch the shaded area on the forward recognition with heater hood sub-assembly shown in the illustration.

    GTY781728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

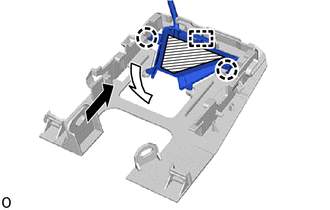

    1. Attach the guide in the direction indicated by the arrow (1) in the illustration.
      GTY796125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
      Heater Area
    2. Attach the claw in the direction indicated by the arrow (2) in the illustration.
      NOTE:

      Do not press the heater area.

    3. Attach the guide to install the wire harness to the forward recognition bracket as shown in the illustration.
      GTY828732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the connector clamp to install the forward recognition with heater hood sub-assembly.
      GTY781783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the connector.
      GTY820884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FORWARD RECOGNITION CAMERA

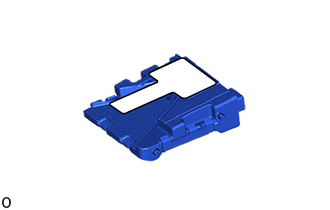

    1. When using a new forward recognition camera:
      GTY531095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the protective film.
        NOTE:

        Do not touch the camera lens after removing the protective film.

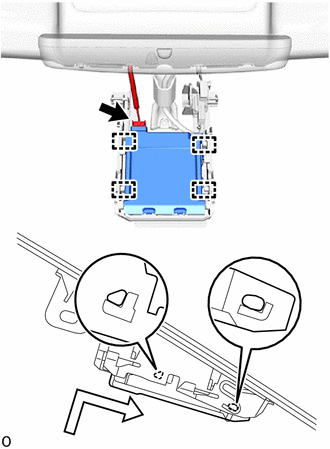

    2. w/o Camera Heater:
      GTY809437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Install in this Direction
      1. Attach the 4 guides as shown in the illustration.
        NOTE:

        Do not touch the camera lens.

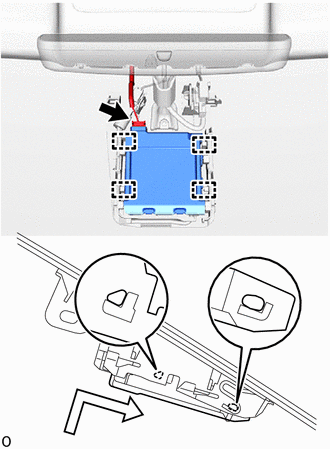

    3. w/ Camera Heater:
      GTY783744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Install in this Direction
      1. Attach the 4 guides as shown in the illustration.
        NOTE:

        Do not touch the camera lens.

    4. Connect the connector.
  3. INSTALL FORWARD RECOGNITION LATCH
    NOTE:

    Before installing the forward recognition latch, make sure that the forward recognition camera is securely installed to the vehicle.

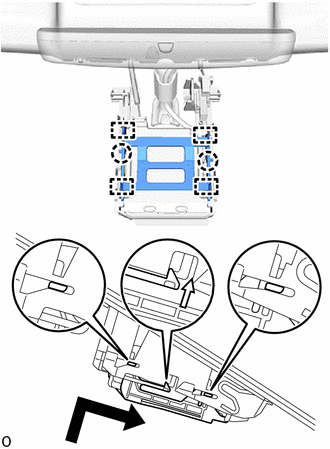

    1. w/o Camera Heater:
      GTY822132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
      1. Attach the 4 guides and 2 claws to install the forward recognition latch as shown in the illustration.

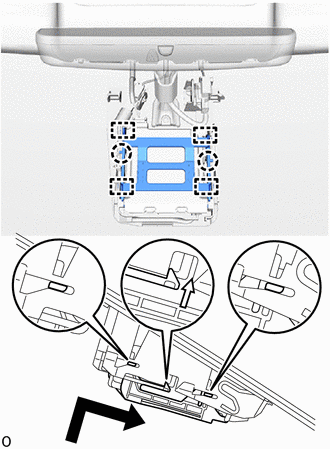

    2. w/ Camera Heater:
      GTY813577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
      1. Attach the 4 guides and 2 claws to install the forward recognition latch as shown in the illustration.
  4. INSTALL NO. 1 FORWARD RECOGNITION COVER

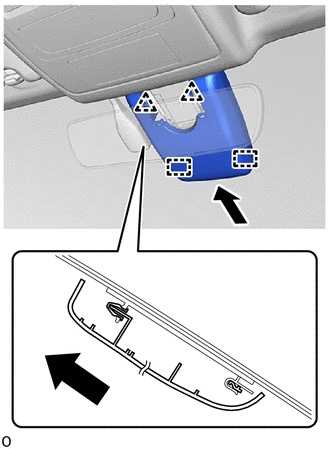

    1. Attach the 2 clips and 2 guides to install the No. 1 forward recognition cover as shown in the illustration.
      GTY827483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL NO. 2 FORWARD RECOGNITION COVER

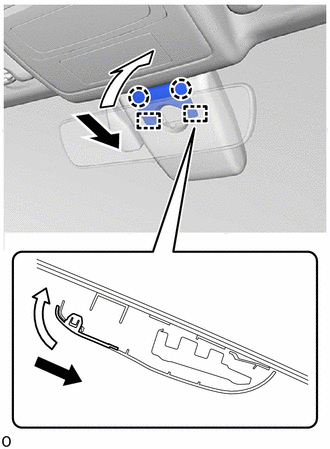

    1. Attach the 2 guides and 2 claws to install the No. 2 forward recognition cover as shown in the illustration.
      GTY812566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  6. ADJUST FORWARD RECOGNITION CAMERA
    1. If the forward recognition camera has been replaced or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.

      Refer to ADJUSTMENT [10/2015 - ]
