Removal [09/2014 - 11/2017]: Procedure

  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  3. REMOVE LOW PITCHED HORN ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

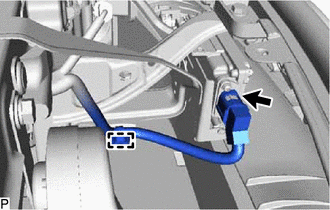

    1. Disconnect the connector.
      GTY501310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

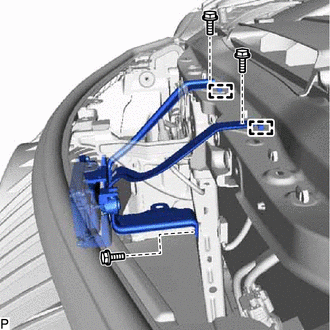

    3. Remove the 3 bolts.
      GTY501309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 guides.

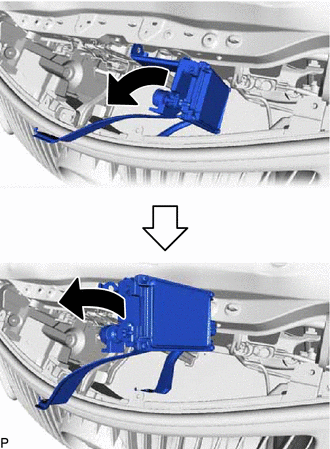

    5. Remove the millimeter wave radar sensor assembly as shown in the illustration.
      GTY518576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
