Components [11/2017 - 10/2022]

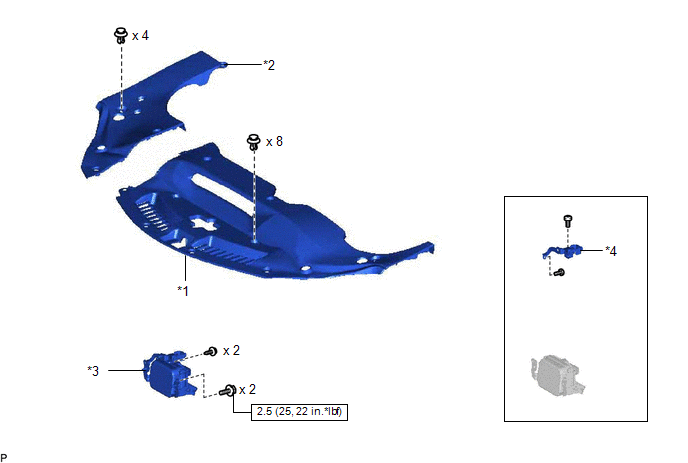

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [11/2017 - 10/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE ROOM SIDE COVER |
| *3 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *4 | NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
