Drive Start Control [10/2023 - ]: Procedure
- PAST ACTIVATION CONFIRMATION
- Check if the customer operated the vehicle in a way that would cause the drive start control to operate.
HINT:
The operating conditions for drive start control include sudden start restraint control and reverse speed control.
- Sudden start restraint control
Activation conditions

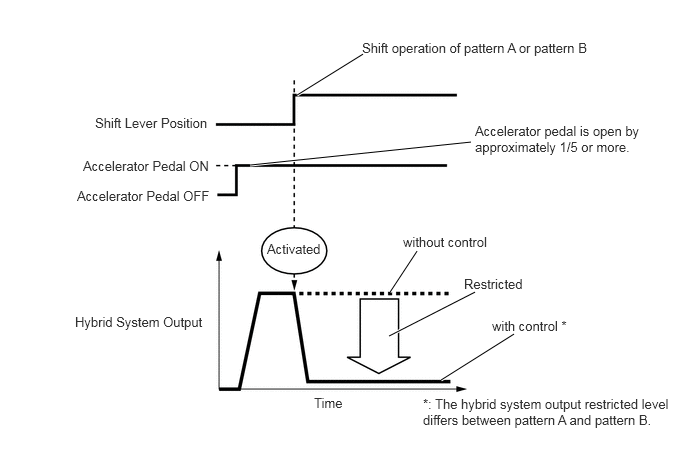

- Pattern A (When all of the following conditions are met, control starts.)
- The accelerator pedal is open by approximately 1/5 or more.
- The shift lever is moved from P to any forward position D (Including other forward shift positions) or R.
- Pattern B (When all of the following conditions are met, control starts.)
- The accelerator pedal is open by approximately 1/5 or more.
- The shift lever is moved from R to any forward position D (Including other forward shift positions), any forward position D (Including other forward shift positions) to R, or N to R.
HINT:
Operation may not be possible in certain situations.
- Items Controlled
- Hybrid system output is restricted.
- Deactivation Conditions
- The accelerator pedal is released.
- The shift state is in park (P) or neutral (N).
- Pattern A (When all of the following conditions are met, control starts.)

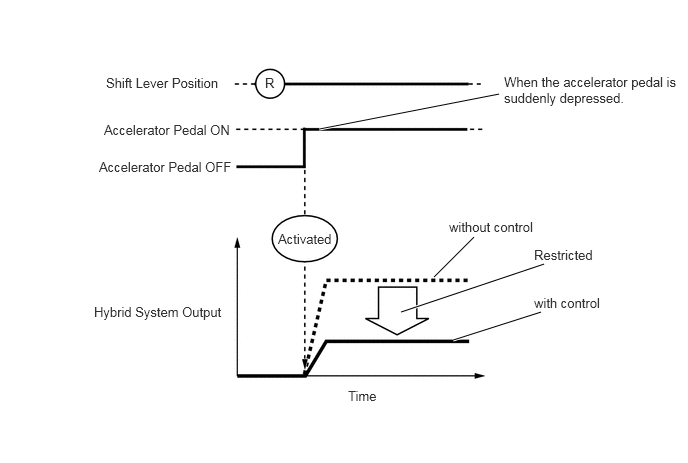

- Reverse speed control
Activation conditions
- When reverse speed control is turned ON. (When all of the following conditions are met, control starts.)
- Items Controlled
- Hybrid system output is restricted.
- Deactivation Conditions
- The accelerator pedal is released.
- The shift lever is moved to any shift state other than reverse (R).
HINT:
- The restraint level for hybrid system output differs between the sudden start restraint controls (Pattern A and Pattern B) and the reverse speed control (reverse speed control ON).
- During reverse speed control and sudden start restraint control, hybrid system output is adjusted based on the road gradient.
- Sudden start restraint control is not active when TRC is turned off.
Control will also not operate under the following conditions. (if equippe
- When TRAIL mode is on
- When multi-terrain select is selected
- The reverse speed control can be temporarily set to OFF via vehicle settings.
Result
Result Proceed to Not performed A Performed B - Sudden start restraint control
Result:
B
SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE). Refer to PROBLEM SYMPTOMS TABLE [10/2023 - ]
Result:
A
See step 2
- Check if the customer operated the vehicle in a way that would cause the drive start control to operate.
- CHECK DTC OUTPUT (HEALTH CHECK)
- Check the DTCs.
- Turn the ignition switch off.
Result
Result Proceed to DTCs are not output (Hunting) A DTCs are not output (Hesitation/poor acceleration) B DTCs are output C
Result:
B
See step 6
Result:
C
GO TO DTC CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2023 - ]
Result:
A
See step 3
- READ VALUE USING TECHSTREAM (FR, FL, RR, RL WHEEL SPEED)
- Connect the Techstream to the DLC3.
- Turn the power switch on (READY).
- Turn the Techstream on.
- Enter the following menus: Chassis / Brake/EPB / Data List / FR Wheel Speed, FL Wheel Speed, RR Wheel Speed and RL Wheel Speed.
Chassis > Brake/EPB > Data List
Tester Display FR Wheel Speed FL Wheel Speed RR Wheel Speed RL Wheel Speed - Read the value displayed on the Techstream.
HINT:
If the Data List updates slowly, perform measurement after selecting only the "FR Wheel Speed", "FL Wheel Speed", "RR Wheel Speed" and "RL Wheel Speed" items.
Chassis > Brake/EPB > Data List
Tester Display Measurement Item Range Normal Condition FR Wheel Speed Front speed sensor RH Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph) When driving at constant speed: No large fluctuations FL Wheel Speed Front speed sensor LH Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph) When driving at constant speed: No large fluctuations RR Wheel Speed Rear speed sensor RH Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph) When driving at constant speed: No large fluctuations RL Wheel Speed Rear speed sensor LH Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph) When driving at constant speed: No large fluctuations Standard
Condition Specified Condition Vehicle stopped 0 km/h (0 mph) Vehicle being driven at constant speed between 16 to 64 km/h (10 to 40 mph) No large fluctuations when driving at a constant speed WARNING:When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.
- Turn the power switch off.
Result
Proceed to OK NG
Result:
NG
INSPECT FRONT OR REAR SPEED SENSOR
w/ Front LiDAR Sensor: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]
w/o Front LiDAR Sensor: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]
Result:
OK
See step 4
- READ VALUE USING TECHSTREAM (VEHICLE SPEED)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Hybrid Control / Data List / Vehicle Speed.
Powertrain > Hybrid Control > Data List
Tester Display Vehicle Speed - Read the value of "Vehicle Speed" displayed on the Techstream.
HINT:
If the Data List updates slowly, perform measurement after selecting only the "Vehicle Speed" item.
Powertrain > Hybrid Control > Data List
Tester Display Measurement Item Range Normal Condition Vehicle Speed Vehicle speed Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) Vehicle stopped: 0 km/h (0 mph)
While driving at a constant speed: No significant fluctuationStandard
Inspection Condition Specified Condition Vehicle stopped 0 km/h (0 mph) Vehicle being driven at a constant speed
(16 to 64 km/h (10 to 40 mph))No large fluctuations in displayed speed WARNING:Perform this road test only in an appropriate safe location, in accordance with all local laws.
HINT:
Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.
- Turn the power switch off.
Result
Proceed to OK NG
Result:
NG
INSPECT ELECTRONICALLY CONTROLLED BRAKE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)
w/ Front LiDAR Sensor: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]
w/o Front LiDAR Sensor: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]
Result:
OK
See step 5
- READ VALUE USING TECHSTREAM (LATERAL G, FORWARD AND REARWARD G)
- Connect the Techstream to the DLC3.
- Turn the power switch on (READY).
- Turn the Techstream on.
- Enter the following menus: Chassis / Brake/EPB / Data List / Lateral G and Forward and Rearward G.
Chassis > Brake/EPB > Data List
Tester Display Lateral G Forward and Rearward G - Read the value displayed on the Techstream.
HINT:
If the Data List updates slowly, perform measurement after selecting only the " Lateral G" and " Forward and Rearward G " items.
Chassis > Brake/EPB > Data List
Tester Display Measurement Item Range Normal Condition Lateral G Lateral G Min.: -25.105 m/s2
Max.: 24.908 m/s2Turning right: -25.105 to 0.000 m/s2
Turning left: 0.000 to 24.908 m/s2Forward and Rearward G Forward and rearward G Min.: -25.105 m/s2
Max.: 24.908 m/s2During deceleration: -25.105 to 0.000 m/s2
During acceleration: 0.000 to 24.908 m/s2Standard
Condition Specified Condition During deceleration Value changes with vehicle speed During acceleration Value changes with vehicle speed WARNING:When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.
- Turn the power switch off.
Result
Proceed to OK NG
Result:
OK
SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE). Refer to PROBLEM SYMPTOMS TABLE [10/2023 - ]
Result:
NG
INSPECT YAW RATE SENSOR
w/ Front LiDAR Sensor: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]
- READ VALUE USING TECHSTREAM (SHIFT POSITION)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Hybrid Control / Data List / Shift Position.
Powertrain > Hybrid Control > Data List
Tester Display Shift Position - Read the value displayed on the Techstream.
Powertrain > Hybrid Control > Data List
Tester Display Measurement Item Range Normal Condition Shift Position Current shift state P / R / N / D / B Matches currently selected shift state:
park (P), reverse (R), neutral (N), drive (D) or manual (M)OK
Condition Specified Condition Select shift state Matches currently selected shift state - Turn the power switch off.
Result
Proceed to OK NG
Result:
NG
GO TO ELECTRONIC SHIFT LEVER SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]
Result:
OK
See step 7
- READ VALUE USING TECHSTREAM (ACCELERATOR POSITION SENSOR NO. 1 VOLTAGE %, ACCELERATOR POSITION SENSOR NO. 2 VOLTAGE %)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Hybrid Control / Data List / Accelerator Position Sensor No. 1 Voltage %, Accelerator Position Sensor No. 2 Voltage %.
Powertrain > Hybrid Control > Data List
Tester Display Accelerator Position Sensor No. 1 Voltage % Accelerator Position Sensor No. 2 Voltage % - Read the value displayed on the Techstream.
HINT:
If the Data List updates slowly, perform measurement after selecting only the "Accelerator Position Sensor No. 1 Voltage %" and "Accelerator Position Sensor No. 2 Voltage %" items.
Powertrain > Hybrid Control > Data List
Tester Display Measurement Item Range Normal Condition Accelerator Position Sensor No. 1 Voltage % Accelerator pedal position sensor No. 1 Min.: 0.0%, Max.: 100.0% Accelerator pedal depressed:
Changes with accelerator pedal pressureAccelerator Position Sensor No. 2 Voltage % Accelerator pedal position sensor No. 2 Min.: 0.0%, Max.: 100.0% Accelerator pedal depressed:
Changes with accelerator pedal pressureOK
Condition Specified Condition Accelerator Pedal Released → Depressed Values smoothly change following accelerator pedal operation - Turn the power switch off.
Result
Proceed to OK NG
Result:
OK
SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE). Refer to PROBLEM SYMPTOMS TABLE [10/2023 - ]
Result:
NG
REPLACE ACCELERATOR PEDAL (W/SENSOR) ROD ASSEMBLY. Refer to REMOVAL [10/2017 - ]
