Installation [10/2023 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus LS 500, 2023 Lexus LS 500, 2022 Lexus LS 500, and 2021 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
- Attach the guide.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

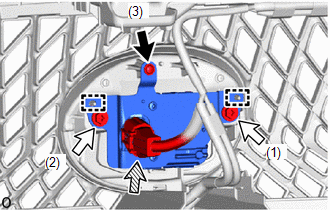

Screw Bolt Connector - Temporarily install the millimeter wave radar sensor assembly with the 2 bolts and screw.
- Tighten the 2 bolts and screw in the order shown in the illustration.
Bolt
Torque: 2.5 N.m (25 kgf/cm, 22 in.lbf)
- Connect the connector.
- Attach the guide.
- INSTALL LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 8
- INSTALL UPPER RADIATOR SUPPORT SEAL
Refer to PROCEDURE - Step 9
- INSTALL RADIATOR COVER PLATE
Refer to PROCEDURE - Step 10
- ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY
- When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.
HINT:
Millimeter wave radar sensor assembly learning can be performed by using either Triangle Target, Flat Surface Target or Driving Adjustment.
- Target Adjustment (Triangle Target):
- Target Adjustment (Flat Surface Target):
Refer to TARGET ADJUSTMENT (FLAT SURFACE TARGET) [10/2023 - ]
- Driving Adjustment:
Refer to DRIVING ADJUSTMENT [10/2023 - ]
- When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.
