Disassembly [10/2020 - 11/2021]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500, 2023 Lexus LS 500, 2022 Lexus LS 500, and 2021 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET
    NOTE:

    Do not disassemble the No. 1 millimeter wave radar sensor bracket except when replacing it.

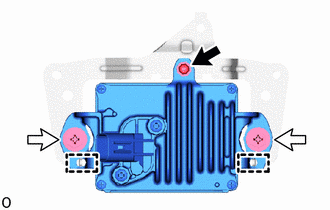

    1. Remove the 2 bolts and screw.
      GTY819304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt
    2. Detach the guide and remove the No. 1 millimeter wave radar sensor bracket.
