Removal [10/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500, 2023 Lexus LS 500, 2022 Lexus LS 500, and 2021 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 2

  2. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 3

  4. REMOVE DRIVER MONITOR CAMERA
    NOTE:

    Do not reuse the driver monitor camera if it has been dropped or subjected to a severe impact.

    1. Remove the 3 screws.
      GTY1228818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

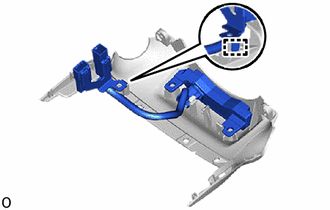

    2. Detach the hook and remove the wire harness bracket.
      GTY1228822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Slide in the direction indicated by the arrow shown in the illustration.
      GTY1234363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Lift in the direction indicated by the arrow shown in the illustration and remove the driver monitor camera.
      GTY1241110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
