Components [10/2017 - ]

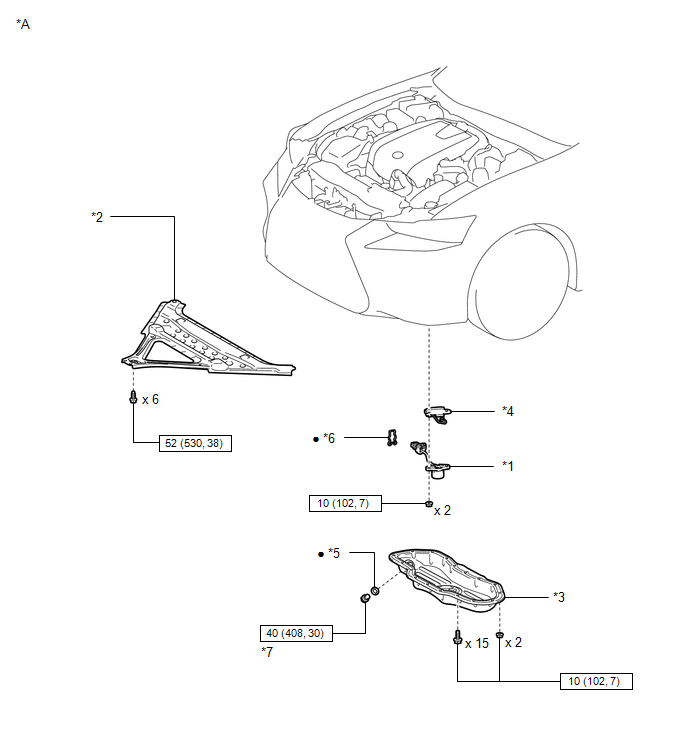

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD	-	-
*1	ENGINE OIL LEVEL SENSOR	*2	FRONT SUSPENSION MEMBER BRACE
*3	NO. 2 OIL PAN SUB-ASSEMBLY	*4	OIL LEVEL SENSOR BRACKET
*5	GASKET	*6	CLIP
*7	OIL PAN DRAIN PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

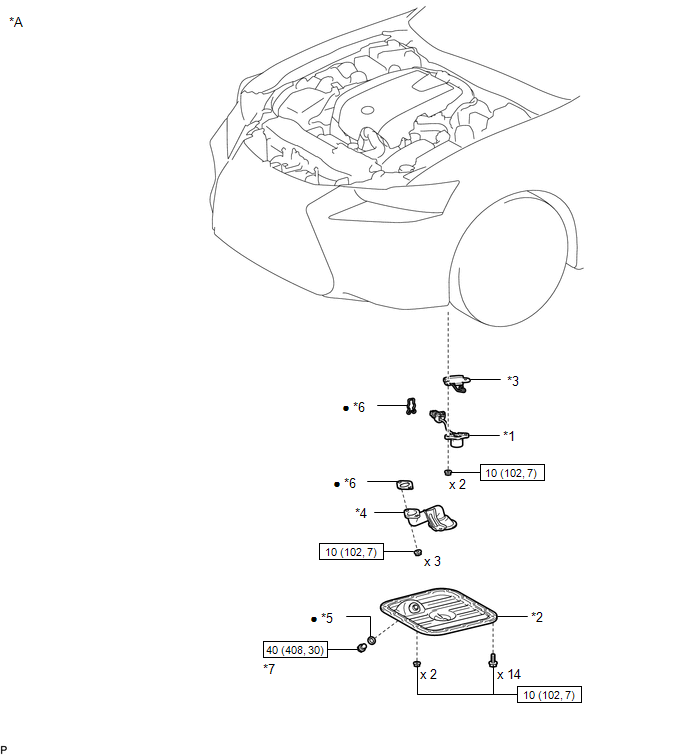

Fig 2: Oil Level Sensor Replacement Components With Torque Specifications (2 Of 2)

*A	for AWD	-	-
*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
*3	OIL LEVEL SENSOR BRACKET	*4	OIL PIPE WITH STRAINER SUB-ASSEMBLY
*5	GASKET	*6	CLIP
*7	OIL PAN DRAIN PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
