Brake Control System (Service Information)
>>
Rear Speed Sensor
>>
Components [09/2014 - ]
>>
Illustration
Components [09/2014 - ]: Illustration

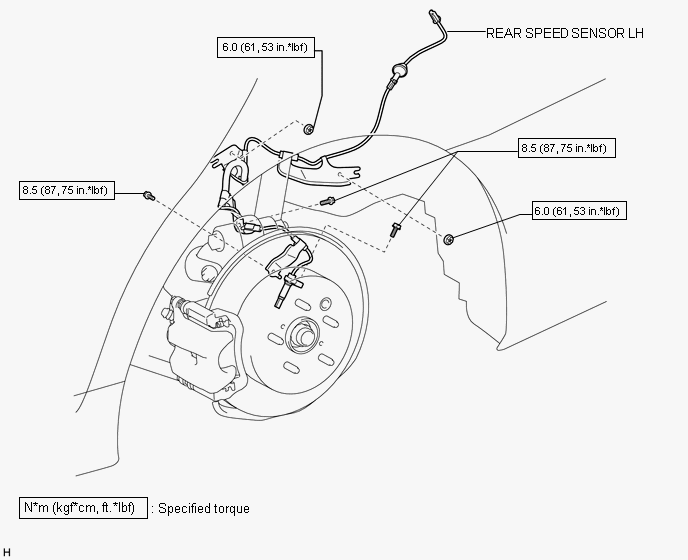

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
