On-Vehicle Inspection [10/2015 - ]: Procedure

HINT:

Perform "Inspection After Repair" after repairing air leaks in the intake system.

Refer to INITIALIZATION [10/2015 - 09/2018] or refer to INITIALIZATION [09/2018 - ]

1. Check that there are no vacuum leaks at the points shown in the illustration.

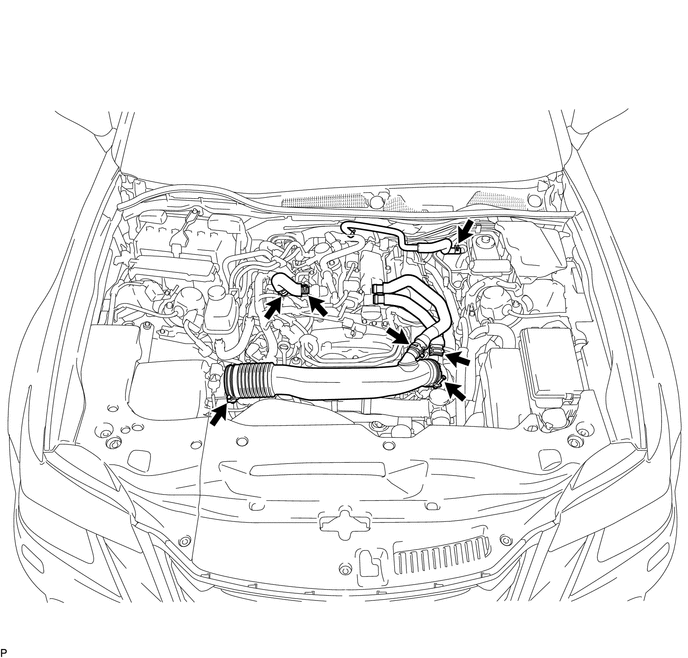

   • for Engine Room Side

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

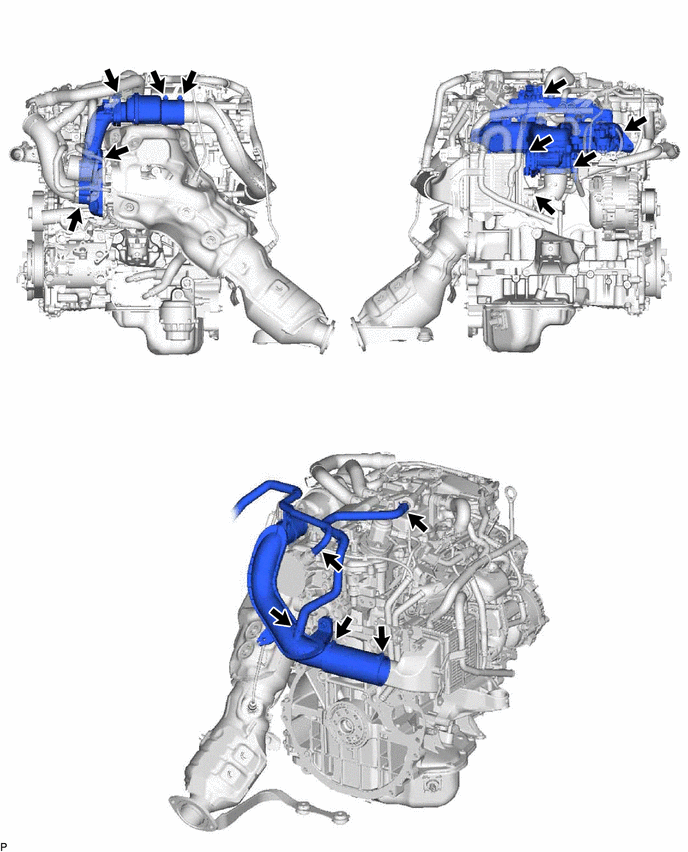

   • for Engine

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
