On-Vehicle Inspection [10/2015 - 12/2017]: Procedure

WARNING:

To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fans when working in the engine compartment with the engine running or the power switch on (IG).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform Inspection After Repair after repairing vacuum leaks in the intake system.

Refer to INITIALIZATION [10/2015 - ]

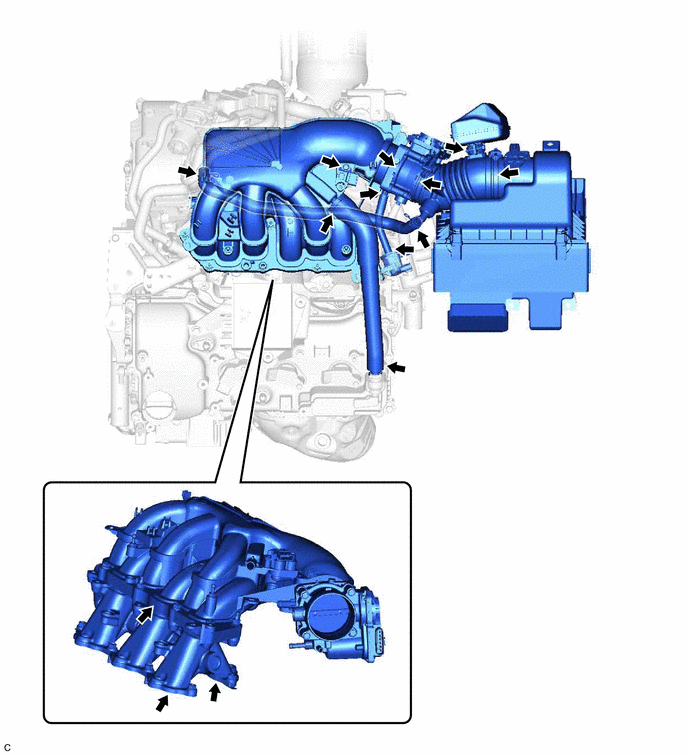

1. Check that there are no vacuum leaks at the points shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform Inspection After Repair after repairing vacuum leaks in the intake system.

   Refer to INITIALIZATION [10/2015 - ]
