Removal [08/2016 - 03/2018]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [08/2016 - 12/2017] Refer to PRECAUTION [12/2017 - 03/2018]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to REMOVAL [08/2016 - 08/2019]
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 9 [08/2016 - 12/2017] Refer to PROCEDURE - Step 9 [12/2017 - 08/2019]
- REMOVE COWL SIDE TRIM BOARD RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 3
- REMOVE INSTRUMENT PANEL GARNISH RH
Refer to PROCEDURE - Step 23 [08/2016 - 12/2017] Refer to PROCEDURE - Step 23 [12/2017 - 03/2018]
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 26 [08/2016 - 12/2017] Refer to PROCEDURE - Step 26 [12/2017 - 03/2018]
- REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 3 [10/2015 - 12/2017] Refer to PROCEDURE - Step 3 [12/2017 - 08/2019]
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 27 [08/2016 - 12/2017] Refer to PROCEDURE - Step 27 [12/2017 - 03/2018]

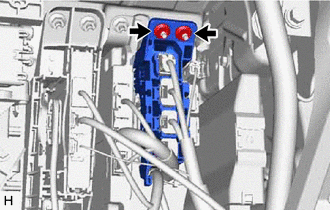

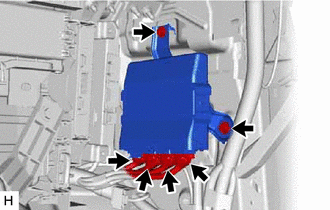

- REMOVE SKID CONTROL ECU ASSEMBLY
