Components [09/2014 - 10/2022]

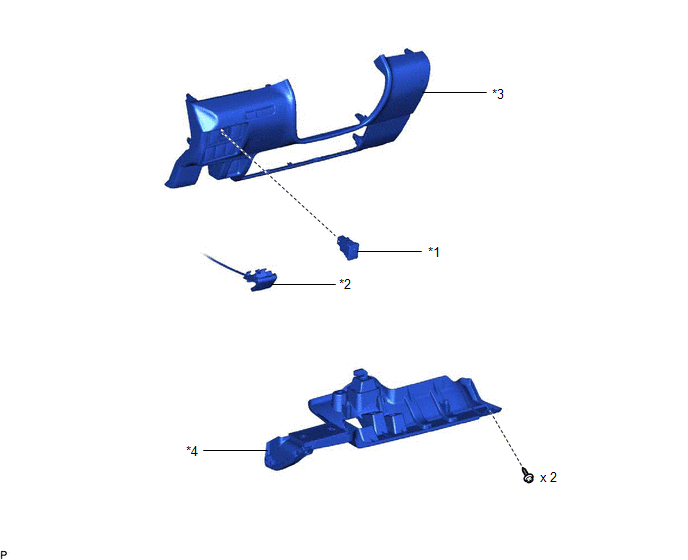

Fig 1: Windshield Deicer Switch Replacement Components [09/2014 - 10/2022]
GTY512276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT WIPER DEICER SWITCH *2 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*3 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *4 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
