Removal [10/2015 - ]: Procedure

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 4

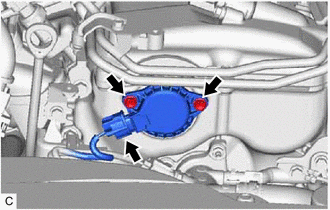

1. Disconnect the camshaft timing oil control solenoid assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover sub-assembly.
   NOTE:

   If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

3. Remove the O-ring from the camshaft timing oil control solenoid assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • If the O-ring comes off in the timing chain cover sub-assembly, make sure to remove it.
   • Do not drop the O-ring into the timing chain cover sub-assembly.
