Parking Assist Monitor System Initialization (L-SB-0077-16)
Publication date: 2016-09-22Reference number: L-SB-0077-16
PARKING ASSIST MONITOR SYSTEM INITIALIZATION
TECHNICAL SERVICE BULLETIN
| LEXUS: | 2017 NX200T, NX300H |
| SERVICE CATEGORY: | General |
| SECTION: | Pre-Delivery Service |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
APPLICABILITY
| YEAR(S) | MODEL(S) | ADDITIONAL INFORMATION |
|---|---|---|
| 2017 | NX200T, NX300H |
INTRODUCTION
The Parking Assist Monitor System assists the driver during parking and parallel parking by displaying an image of the area behind the vehicle.
When the D/C Cut Fuse is removed or battery terminal is disconnected, the power source to the steering angle sensor is cut off. When the D/C Cut Fuse is reinstalled or the battery terminal is reconnected, the rear view monitor will operate, but it may not display estimated course lines to assist parking operation until the system has been initialized.
Initialize the Parking Assist Monitor System after installing the D/C Cut Fuse during Pre-Delivery Service (PDS).
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
INITIALIZATION PROCEDURE
- Start the engine/hybrid system.
- Check if the Parking Assist Monitor System is operative by moving the shift lever to the "R" position with the parking brake applied and the brake pedal depressed.NOTE: If the estimated course lines are displayed on the rear view monitor, STOP, initialization is NOT necessary.
- Move the shift lever to the "P" position and turn the steering wheel lock to lock.
- Move the shift lever to the "R" position.

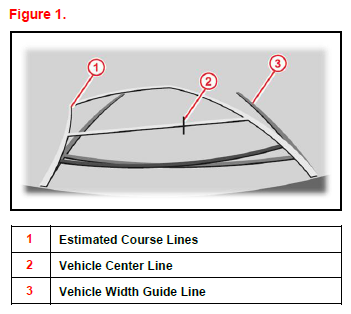

When the estimated course lines are displayed on the rear view monitor as shown, the initialization of the Parking Assist Monitor System has been completed.
NOTE: If the estimated course lines are still NOT displayed after performing these steps, refer to the Repair Manual.
