Components [09/2015 - ]

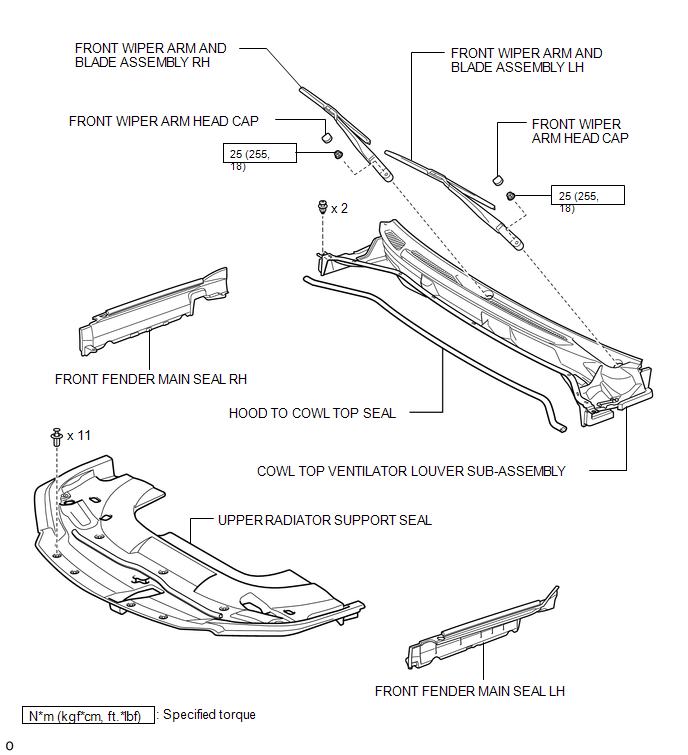

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 5)
GTY646253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

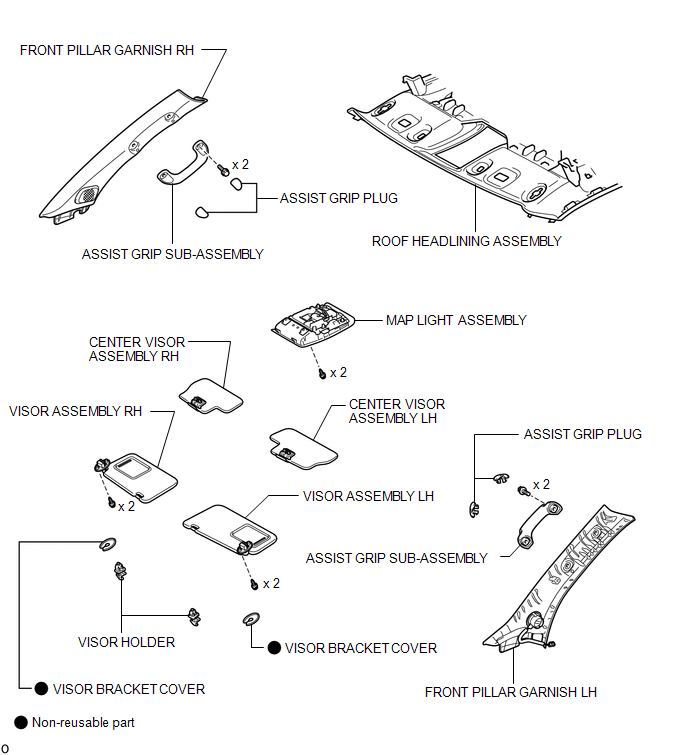

Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 5)
GTY683841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

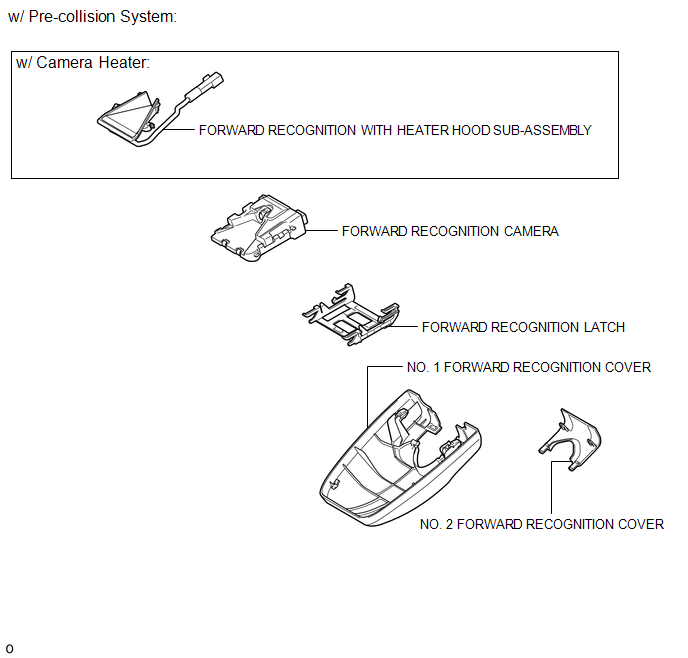

Fig 3: Windshield Glass Replacement Components With Torque Specifications (3 Of 5)
GTY739220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

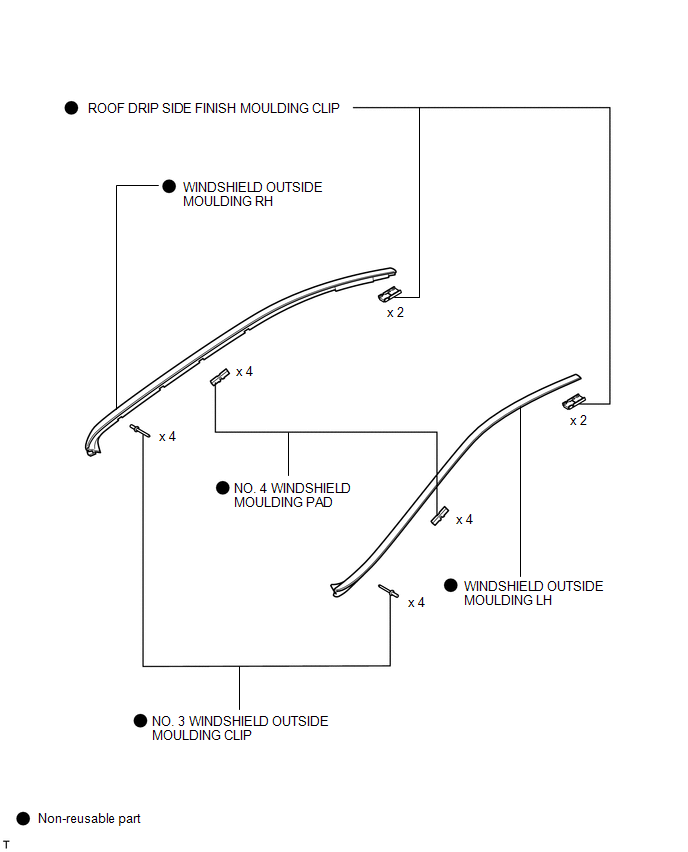

Fig 4: Windshield Glass Replacement Components With Torque Specifications (4 Of 5)
GTY625575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

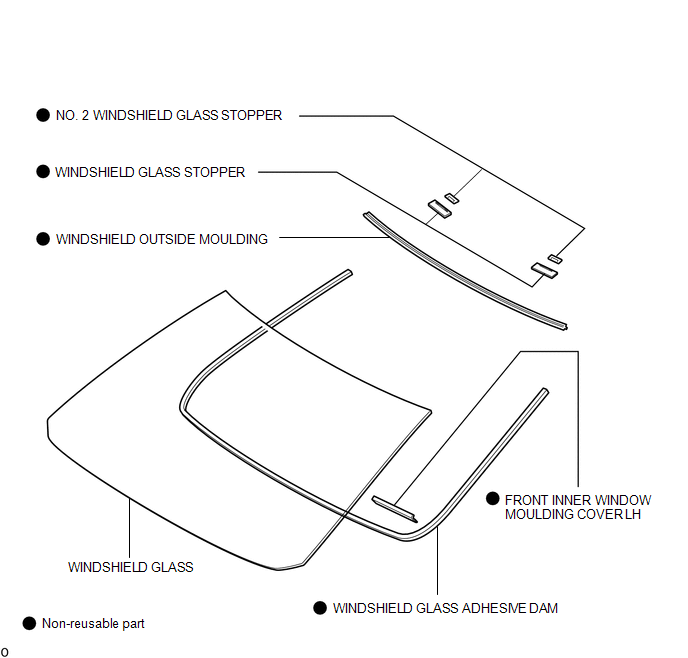

Fig 5: Windshield Glass Replacement Components With Torque Specifications (5 Of 5)
GTY626775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
