Windows
>>
Windows / Glass (Service Information)
>>
Back Window Glass
>>
Components [09/2015 - ]
Components [09/2015 - ]

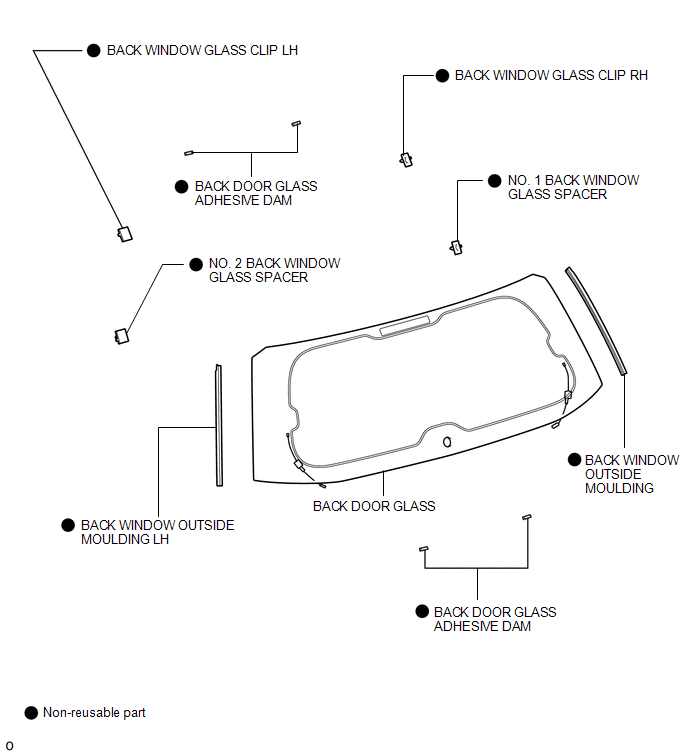

Fig 1: Back Window Glass Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

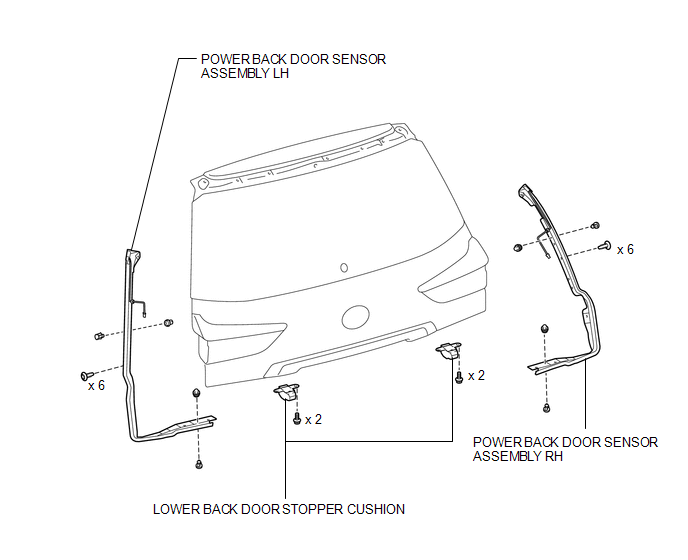

Fig 2: Back Window Glass Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
