Installation [09/2015 - ]: Procedure

  1. INSTALL SPEED SENSOR SP2
    GTY467238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the speed sensor to the transmission case with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    2. Connect the sensor connector.
  2. INSTALL SPEED SENSOR NC3
    GTY467240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the speed sensor to the transmission case with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    2. Connect the sensor connector.
  3. INSTALL SPEED SENSOR NT
    GTY470944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Coat a new O-ring with ATF and install it to the speed sensor.
    2. Using a T30 "TORX" wrench, install the speed sensor with the bolt.

      Torque: 6.8 N*m (69 kgf*cm, 60 in.*lbf)

    3. Connect the sensor connector.
  4. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

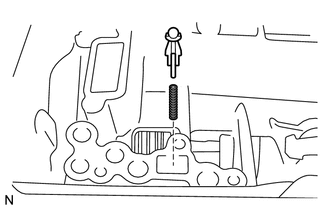

    GTY466946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the spring and check ball body.
    2. Align the hole of the manual valve with the lever pin and connect the lever pin to the manual valve.

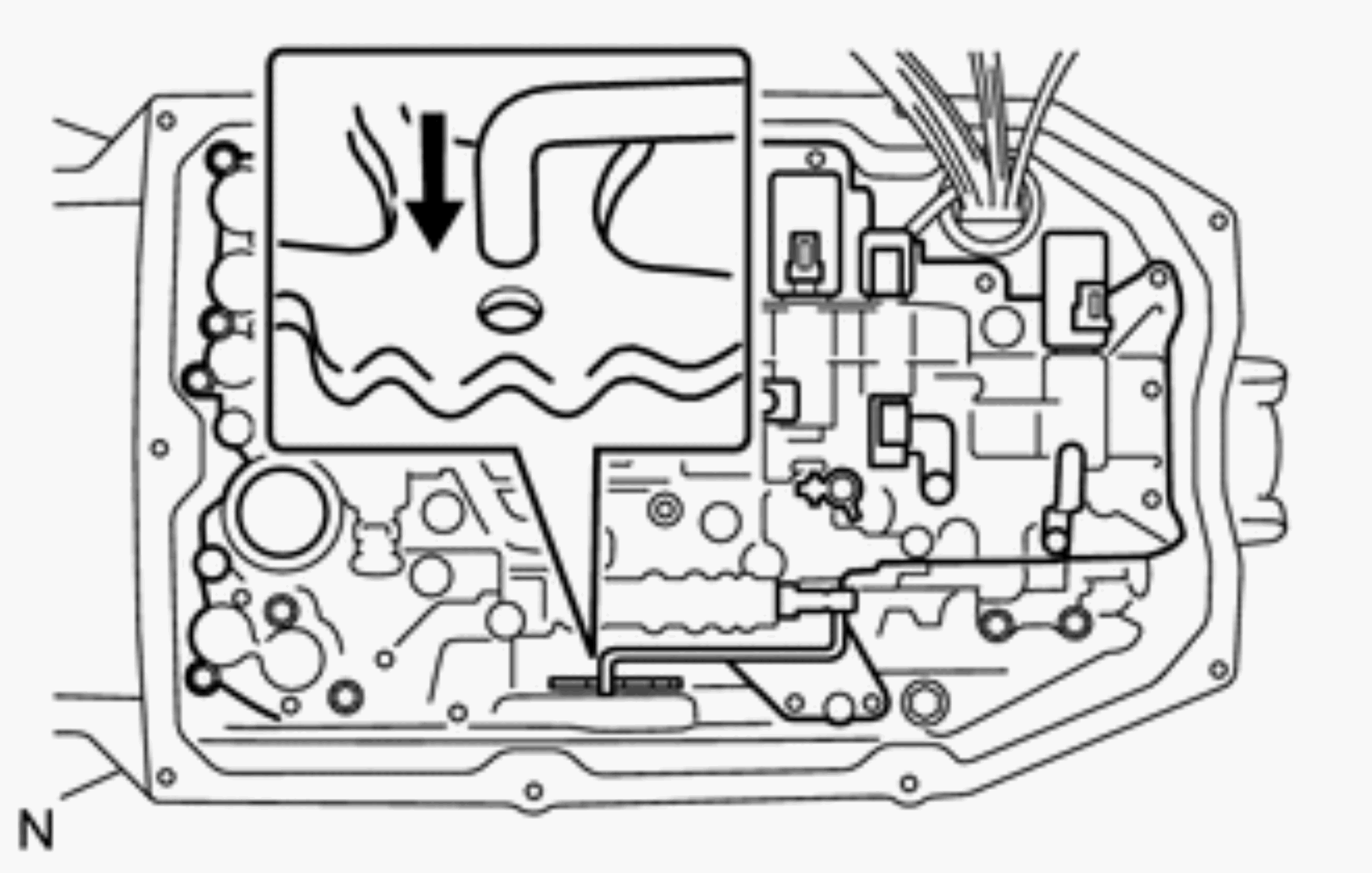

      GTY617890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the valve body with the 17 bolts.

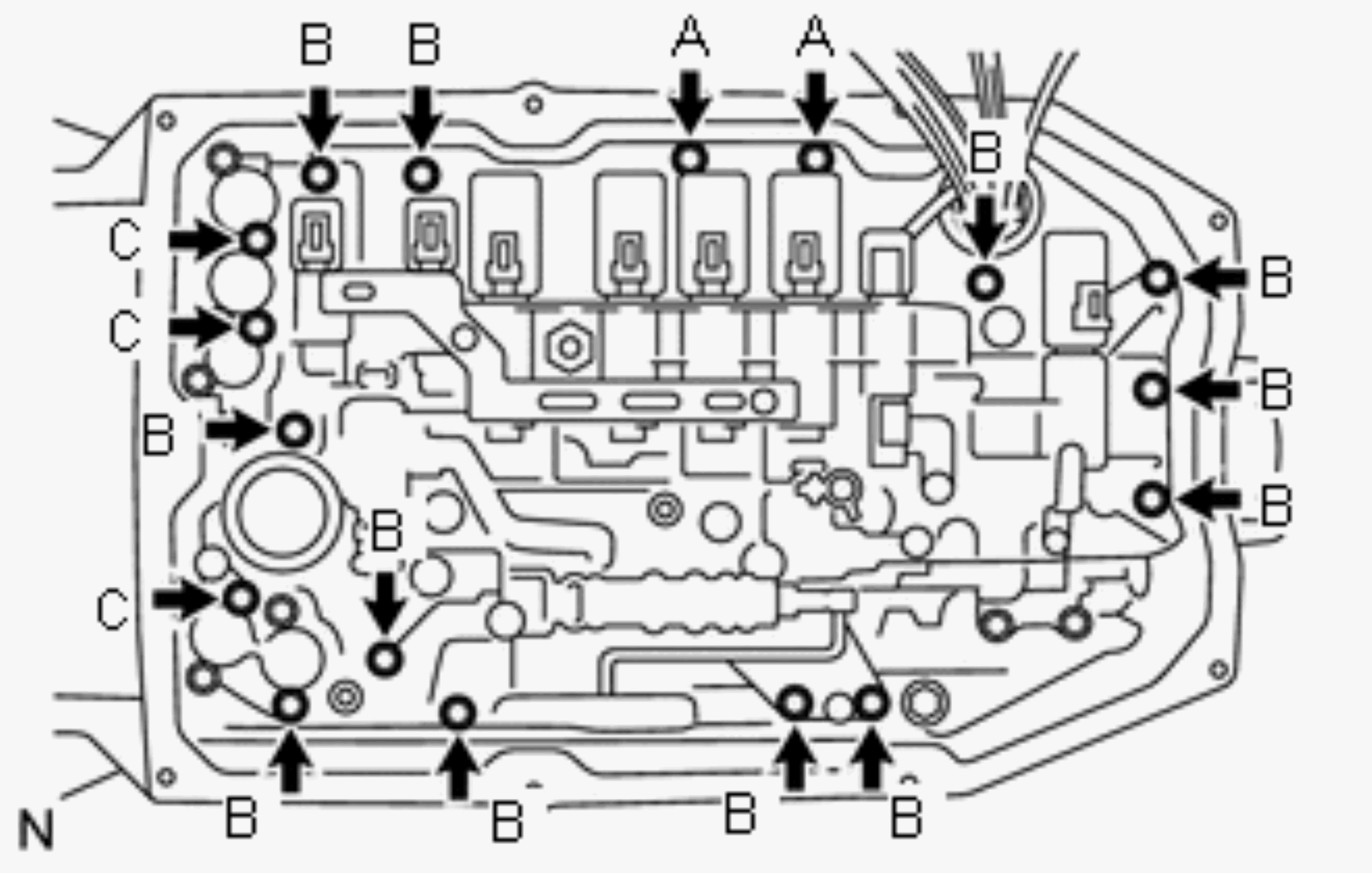

      GTY616879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      HINT:

      Each bolt length is indicated below.

      Bolt length

      21 mm (0.83 in.) for bolt A

      31 mm (1.22 in.) for bolt B

      64 mm (2.52 in.) for bolt C

    4. Install the detent spring and detent spring cover with the bolt.
      NOTE:

      Make sure to install the detent spring so that its roller is perpendicularly at the center of the manual valve lever.

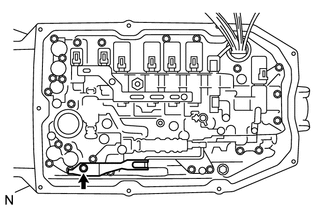

      GTY470883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    5. Connect the 8 connectors to the solenoid valves.

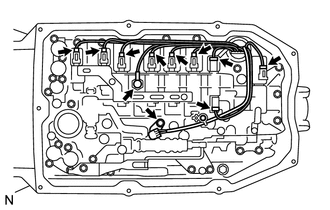

      GTY466945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the oil pressure switch connector.
    7. Coat a new O-ring with ATF and install it to the ATF temperature sensor.
    8. Install the ATF temperature sensor and lock plate with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  5. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
    GTY676683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Coat a new O-ring with ATF and install it to the oil strainer.
      NOTE:

      Ensure that the O-ring is not twisted or pinched.

    2. Install the oil strainer to the valve body with the 4 bolts.
      GTY466942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  6. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
    1. Install the 3 magnets to the oil pan.

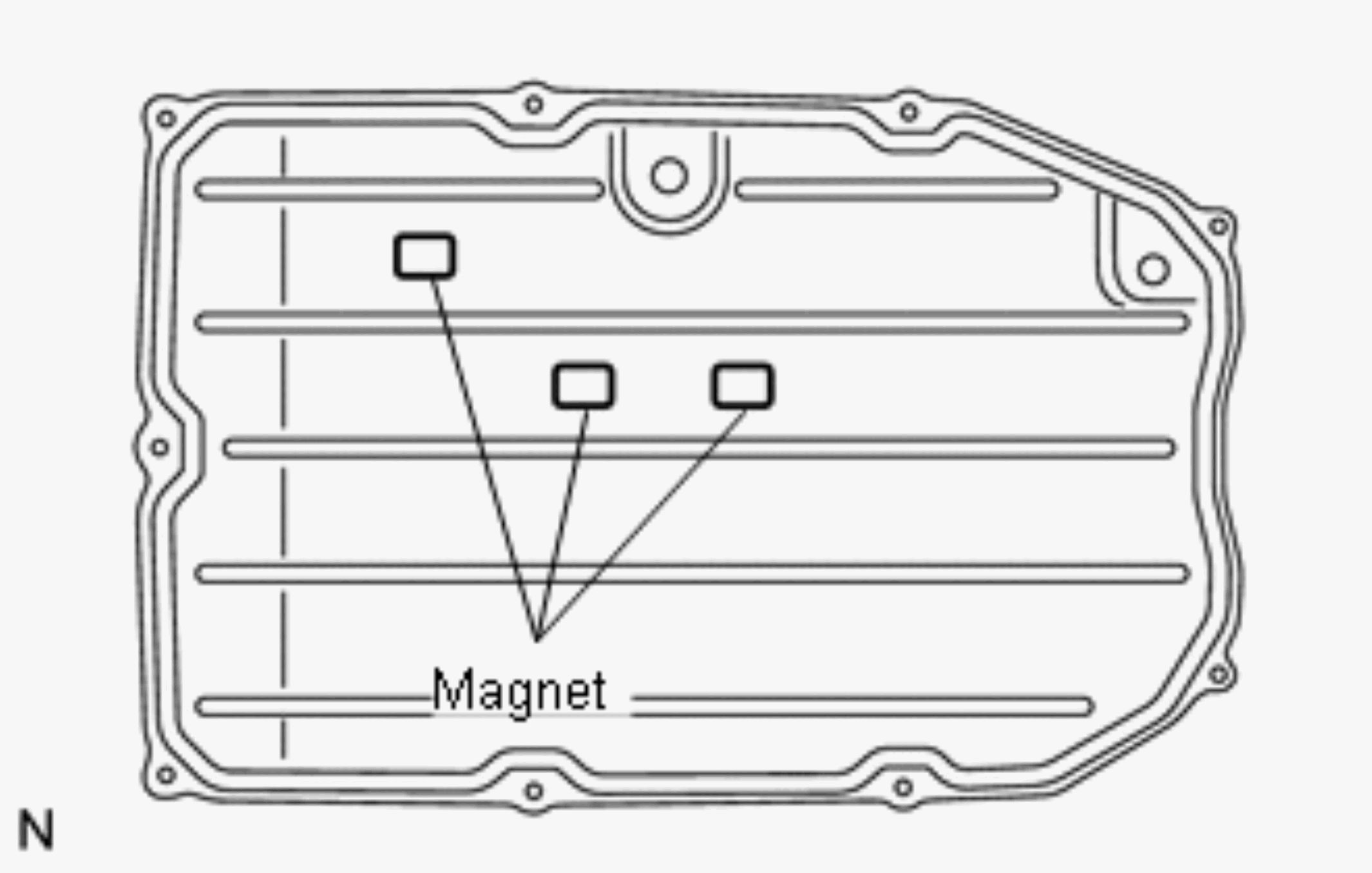

      GTY617495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new gasket and the oil pan to the transmission case with the 9 bolts.
      GTY467217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

      NOTE:
      GTY110546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Make sure that there is no oil or foreign matter on the gasket seal surface and oil pan contact surface.
      • Install the gasket so that there is no slack in the gasket, and that the seal surface's entire circumference is level.
      • Make sure that the 9 gasket drop prevention protrusions are securely inserted into the oil pan grooves.
      • When tightening the oil pan, make sure that the gasket is not pinched between the gasket tightening area sleeve and the transmission seal surface.
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  8. INSTALL COWL TOP VENTILATOR LOUVER

    Refer to PROCEDURE - Step 15

  9. ADD AUTOMATIC TRANSMISSION FLUID
    1. Add automatic transmission fluid (Refer to ADJUSTMENT [09/2015 - ] ).
