Inspection [09/2015 - ]: Procedure

  1. INSPECT HEIGHT ADJUSTABLE ANCHOR SWITCH (for LH Side)

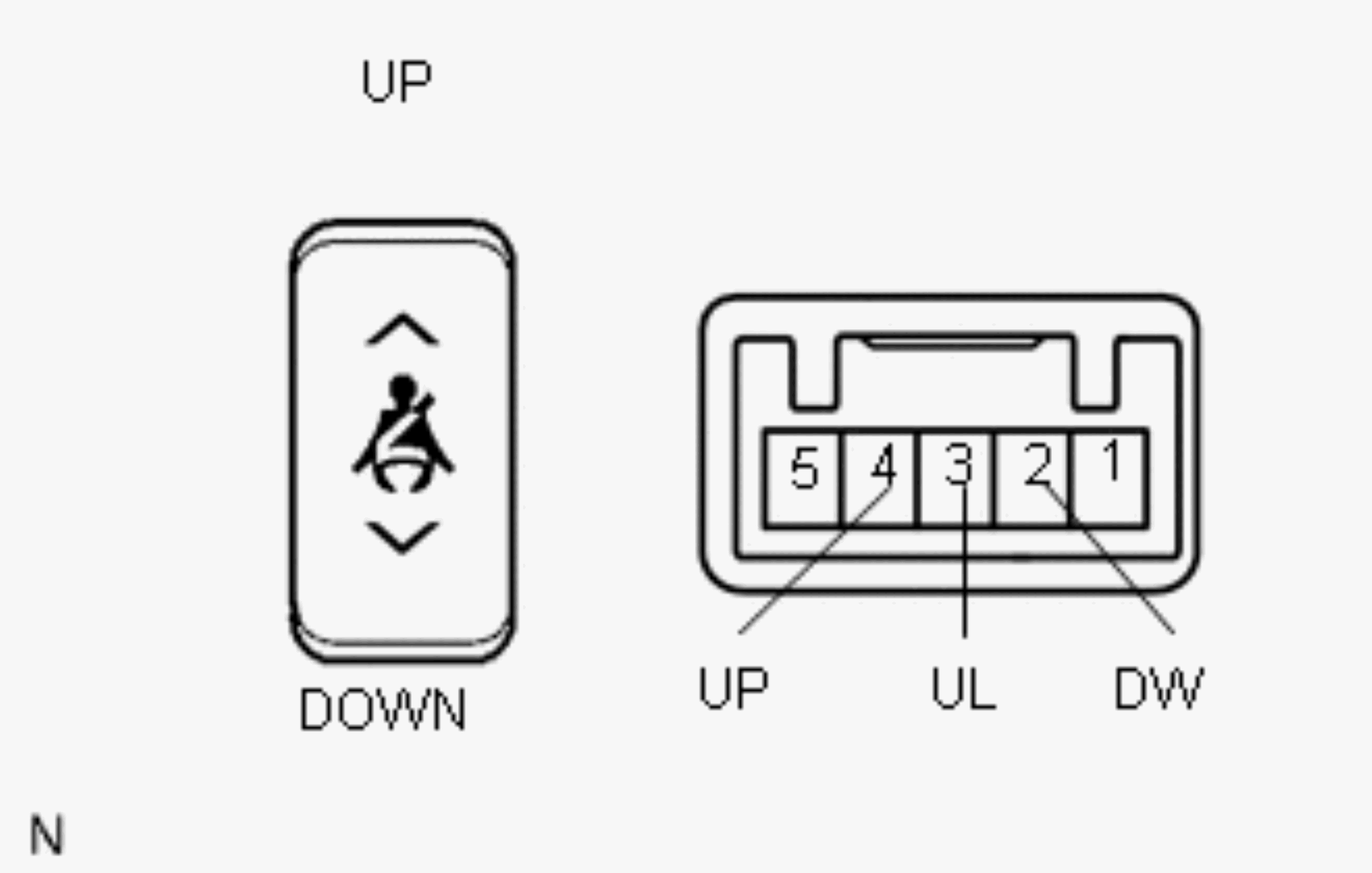

    GTY673281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      3 (UL) - 4 (UP) UP Below 1 Ω
      2 (DW) - 4 (UP) UP 10 kΩ or higher
      2 (DW) - 3 (UL) DOWN Below 1 Ω
      3 (UL) - 4 (UP) DOWN 10 kΩ or higher

      If the result is not as specified, replace the height adjustable anchor switch.

  2. INSPECT HEIGHT ADJUSTABLE ANCHOR SWITCH (for RH Side)

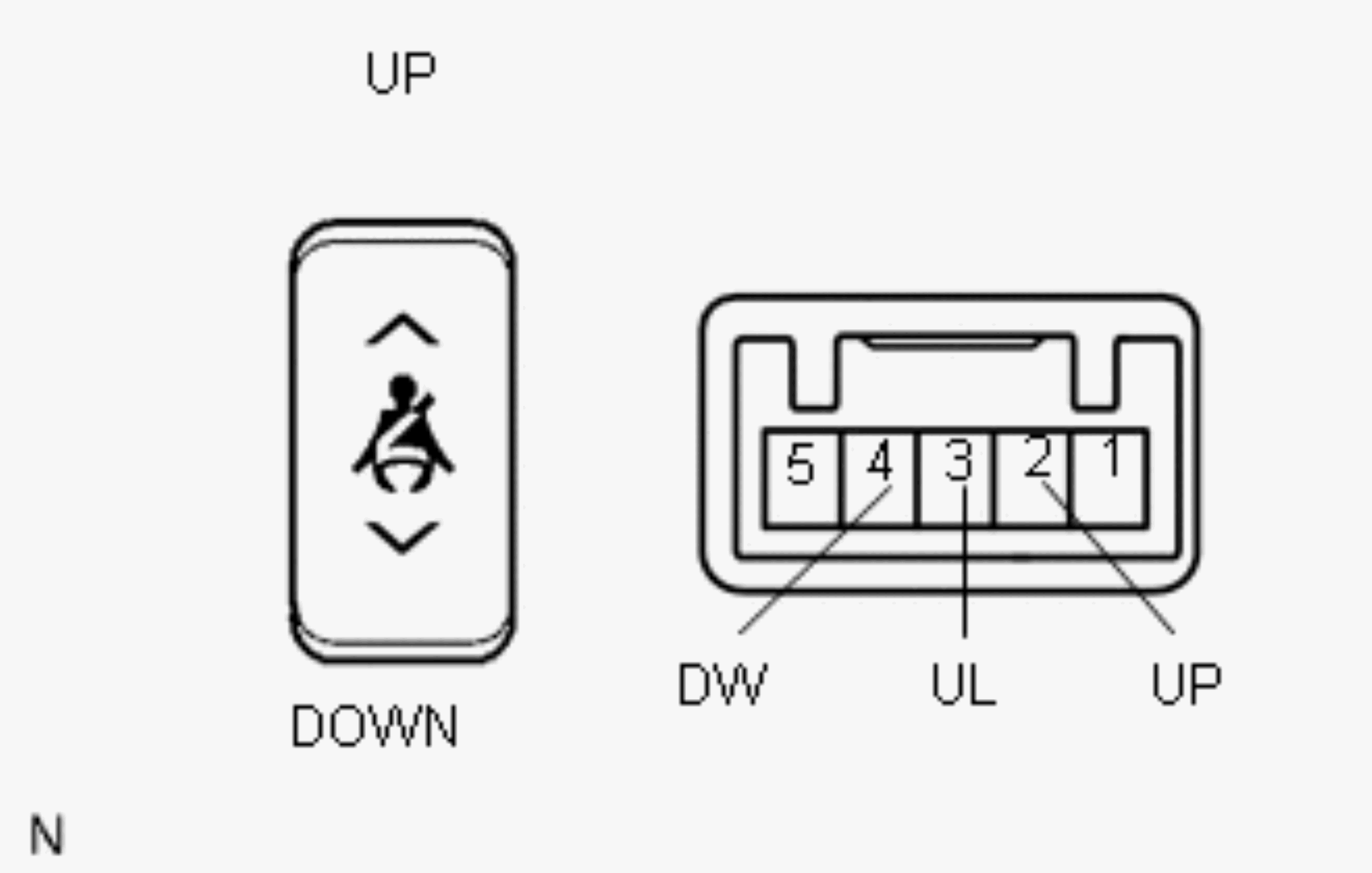

    GTY616082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      2 (UP) - 3 (UL) UP Below 1 Ω
      2 (UP) - 4 (DW) UP 10 kΩ or higher
      3 (UL) - 4 (DW) DOWN Below 1 Ω
      2 (UP) - 3 (UL) DOWN 10 kΩ or higher

      If the result is not as specified, replace the height adjustable anchor switch.
