Installation [09/2015 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front seat inner belt assembly LH with the nut.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   NOTE:

   Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

   TEXT IN ILLUSTRATION



   *1	Protruding Part

2. for Driver Seat:
   1. Attach the claw to connect the connector.
   2. Attach the 6 wire harness clamps.
   3. Connect the 2 connectors.
3. for Front Passenger Seat:
   1. Attach the wire harness clamp.
   2. Connect the 2 connectors.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

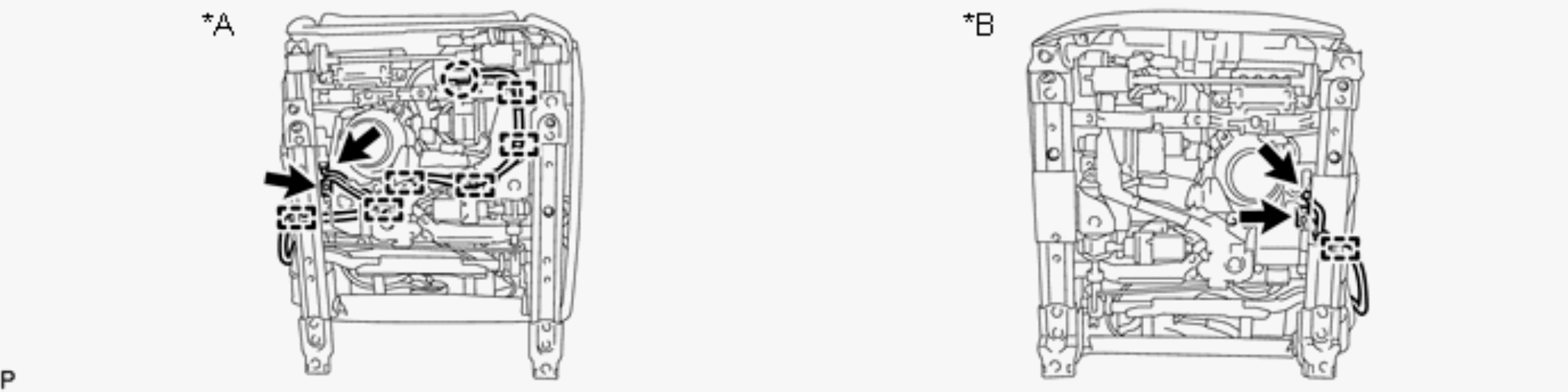

      TEXT IN ILLUSTRATION



      *A

      for Driver Seat

      *B

      for Front Passenger Seat

(Refer to INSTALLATION [09/2015 - ] )

(Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
