Installation [09/2015 - ]: Procedure

  1. INSTALL AIR CONDITIONING INFRARED RAY SENSOR

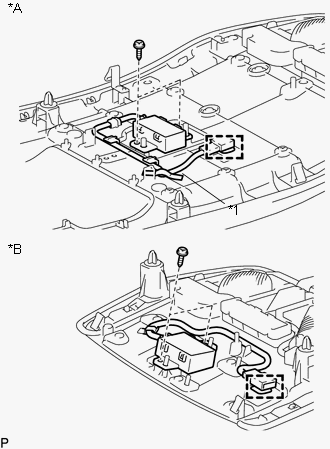

    1. Install the air conditioning infrared ray sensor with the 2 screws.
      GTY407541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the connector clamp and harness clamps.
      TEXT IN ILLUSTRATION

      *A w/ Rear Seat Entertainment System
      *B for5-Passenger with Ottoman
      *1 Tape
    3. w/ Rear Seat Entertainment System:

      Apply a new tape to fix the wire harness as shown in the illustration.

  2. INSTALL INSTALL ROOF CONSOLE BOX ASSEMBLY (w/ Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 21

  3. INSTALL ROOF CONSOLE BOX ASSEMBLY (for 5-Passenger with Ottoman)

    Refer to PROCEDURE - Step 23

  4. INSTALL SPOT LIGHT LENS

    Refer to PROCEDURE - Step 22
