Engine Control System - Service Information
>>
Mass Air Flow Meter
>>
Components [09/2015 - ]
>>
Illustration
Components [09/2015 - ]: Illustration

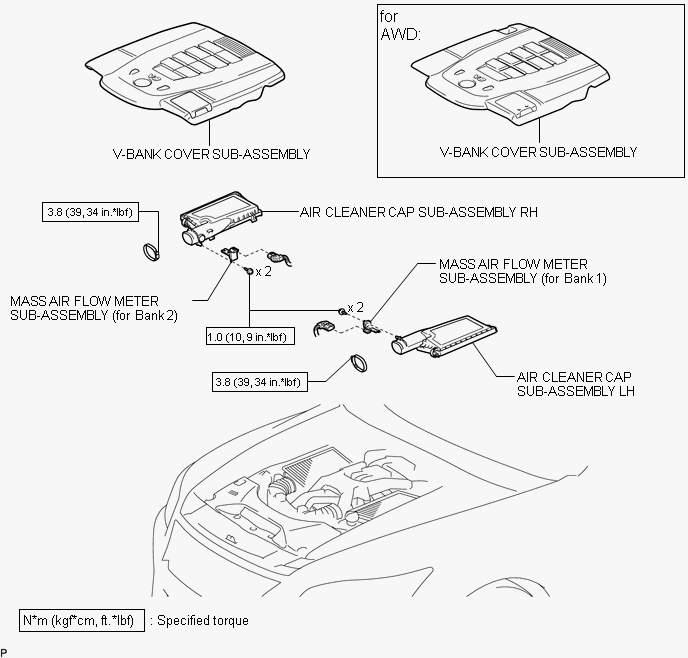

Fig 1: Mass Air Flow Meter Component Location With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
