Inspection [09/2015 - ]: Procedure

  1. INSPECT FUEL PUMP RESISTER

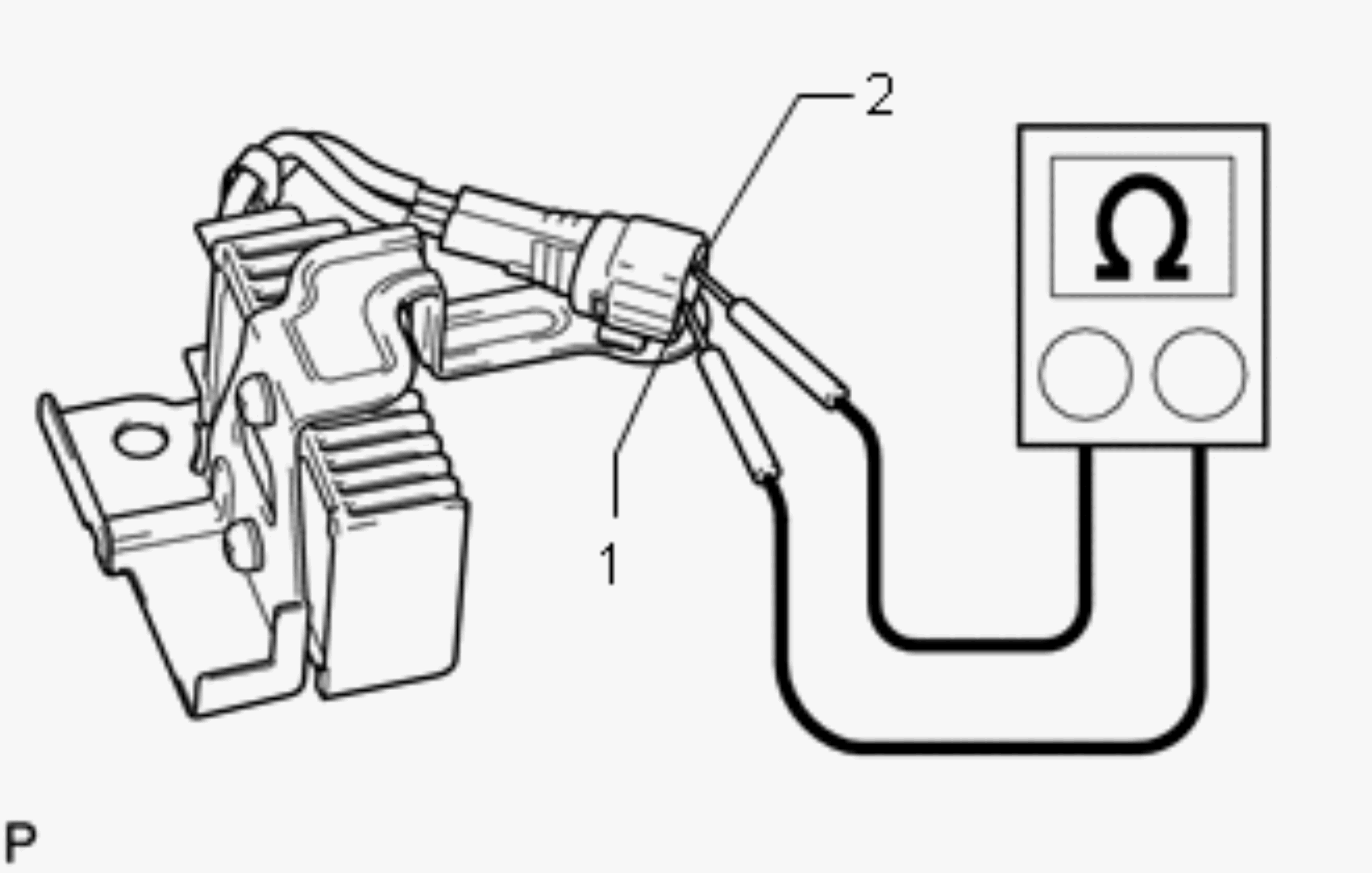

    GTY612020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 0.30 to 0.34 Ω

      If the result is not as specified, replace the resistor.
