Installation [09/2015 - ]: Procedure

  1. INSTALL INTAKE AIR CONTROL VALVE ACTUATOR

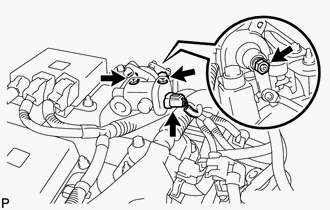

    GTY681723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Temporarily install the actuator rod to the intake air control valve actuator.
    2. Install the intake air control valve actuator to the intake manifold with the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    3. Install the actuator rod to the intake air control valve actuator with the nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

      HINT:

      When tightening the nut, hold the actuator rod in place so that it does not move.

    4. Connect the intake air control valve actuator connector.
  2. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8
