Inspection [09/2015 - ]: Procedure

  1. INSPECT INTAKE AIR CONTROL VALVE ACTUATOR

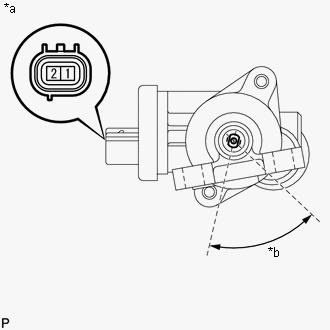

    GTY657223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. When battery voltage is applied between terminals 1 and 2 of the connector, check the operation of the actuator shaft.

      Standard

      Measurement Condition Specified Condition
      Battery positive (+) → Terminal 1
      Battery negative (-) → Terminal 2      		 Actuator shaft rotates to left
      Battery positive (+) → Terminal 2
      Battery negative (-) → Terminal 1      		 Actuator shaft rotates to right
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Intake Air Control Valve Actuator)
      *b Operation Angle 90°
      NOTE:

      Apply battery voltage for 10 seconds or less each time the inspection is performed.
